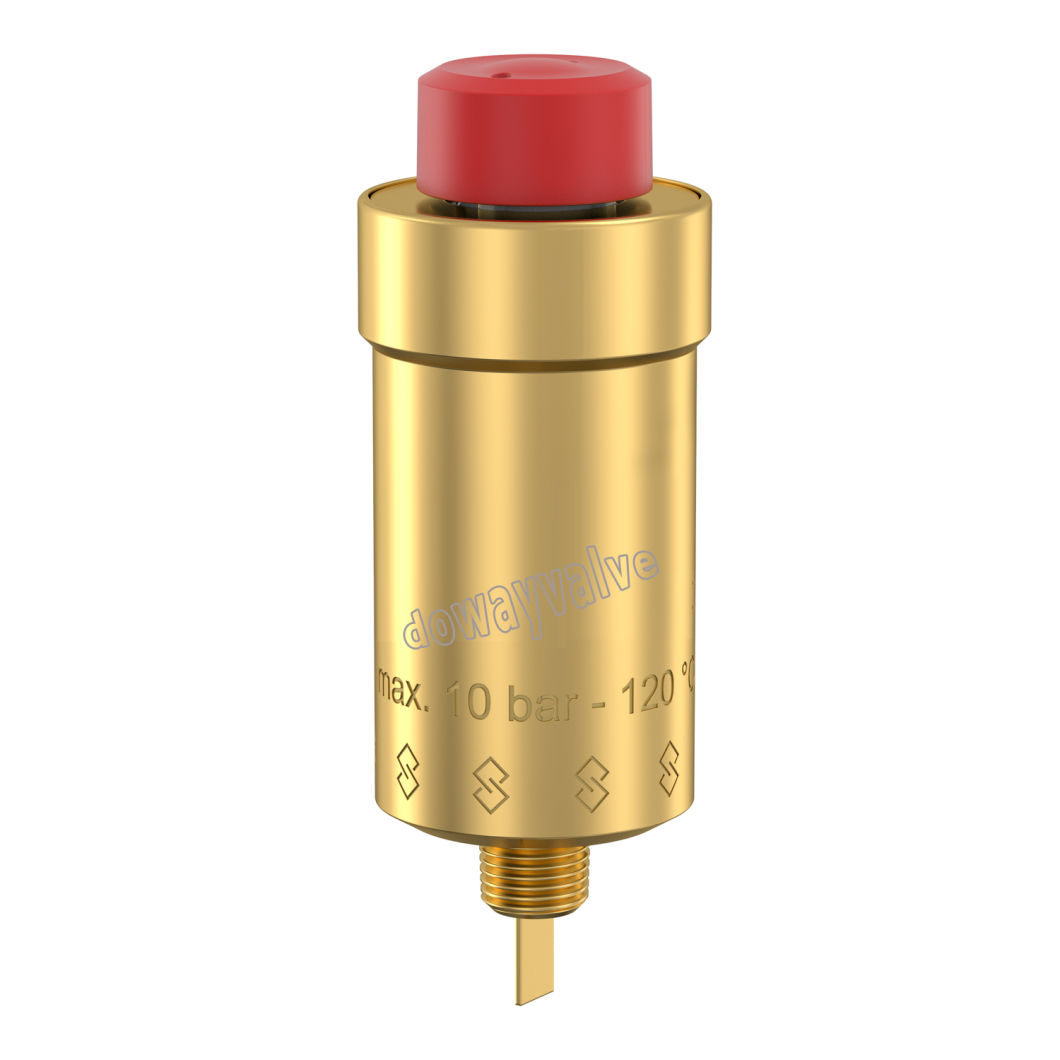

Automatic Brass Air Vent Valve Without Shut-off Valve (DW-VV010)

Price: $ 2.45
Availability:
  • DW-VV010

  • OEM

  • 8481804090

  • Ningbo, China

  • 170000PCS/Month

  • L/C, T/T, Paypal

Product Description:

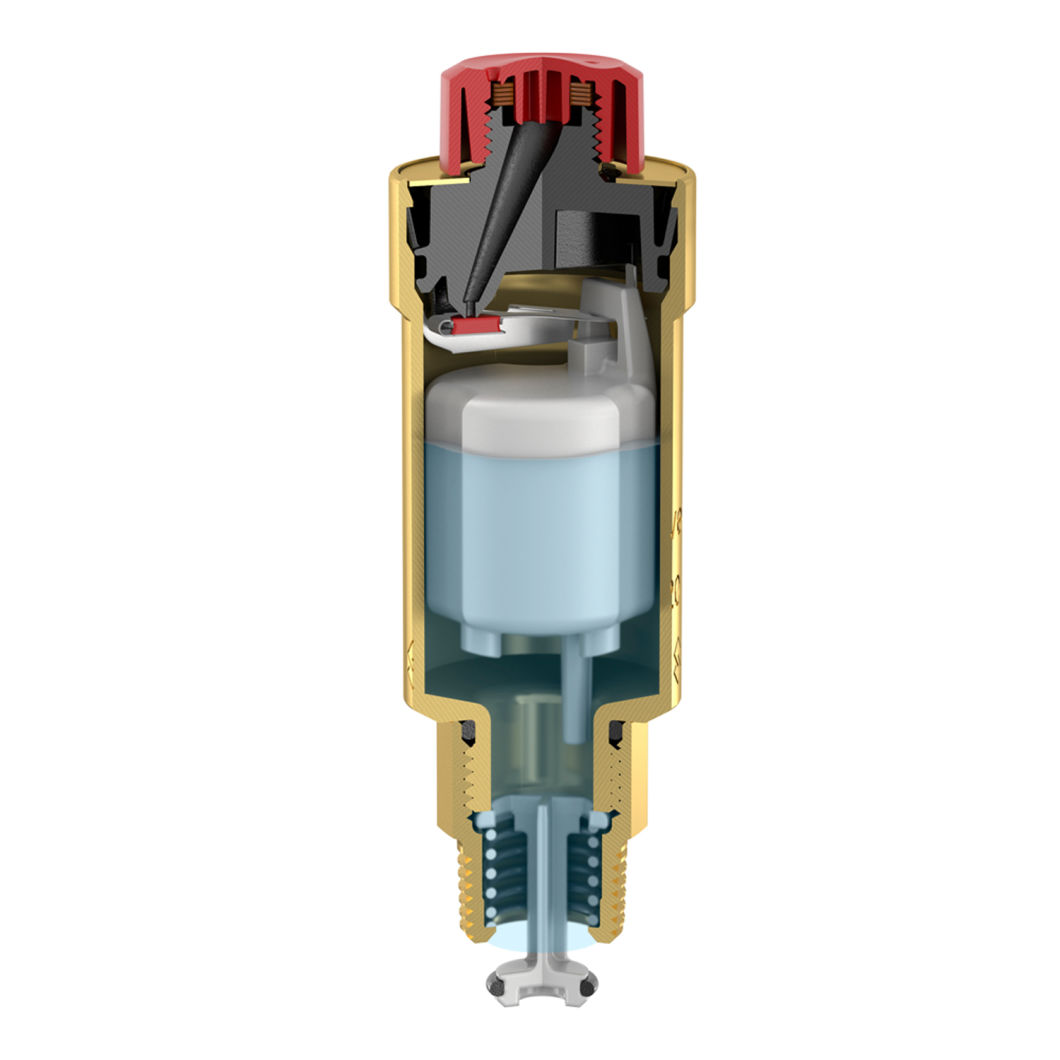

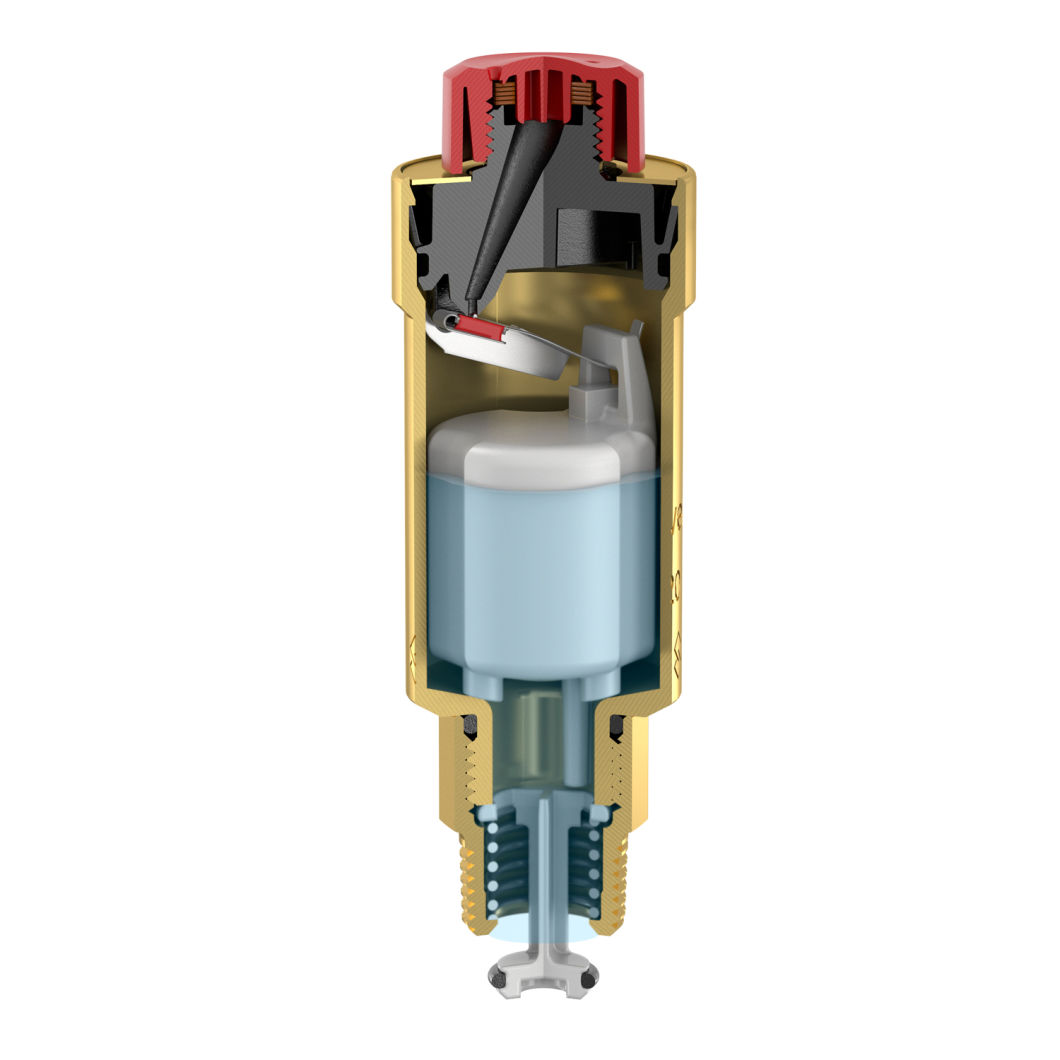

Float operated, the air is collected in the Flexvent causing the float to drop and open the air release valve. The water pressure then pushes the air out, the float rises and closes the valve.
The air cushion in the upper part of each Flexvent protects the valve seat against contamination.

Most types are equipped with a shut-off valve for easy fitting and dismantling.

1. Description: Brass forged body
2. Material: Forged brass (CW511L, CW625N, CW617N, CW602N, ASTM C37700)
3. Size: 1/8", 3/8", 1/2", 3/4"
4. Thread: ISO228, ISO7/1
5. Application: For heating and air conditioning.
6. Installation: Vertically

7. Delivery Time: Within 30~45 days after received payment.
8. Payment Terms: T/T (30% payment in advance, the balance is paid at the sight of B/L copy).
9. Package: Inner box, outer carton, then by pallet.

Technical Specification:
Minimum/Maximum working temperature: -10 °C / 90 °C (peak load: 120 °C).
Minimum/Maximum working pressure: 0.2 / 6.0 bar (peak load: 10.0 bar).
Suitable for addition of glycol-based anti-freeze up to 50%.

Type Dimensions Connection Shut-off valve
φ (mm) H (mm)
1/8" without shut-off valve 30 67 R 1/8" No
3/8" 30 78 R 3/8" Yes
3/8" without shut-off valve 30 66 G 3/8" No
1/8" x 3/8" 30 86-75.5 R 1/8" x 3/8" Yes
1/2" 30 75.5 R 1/2" Yes
1/2" with bubble breaker 31 71 G 1/2" No
1/2" nickel plated 30 80 R 1/2" Yes
3/4" 30 74.5 R 3/4" Yes

Automatic Brass Air Vent Valve Without Shut-off Valve
Automatic Brass Air Vent Valve Without Shut-off ValveAutomatic Brass Air Vent Valve Without Shut-off Valve

FAQ:
1. What is your term of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
2. How about your delivery time?
A: It usually takes 15 to 30 days, which generally depends on the quantity of your order and our storage.
3. Can I get free samples?
A: Yes, send your address, your telephone number, post code, and express account number to us, and tell us which samples you need and samples specification.
4. Can you produce products with my own brand?
A: Yes, we can offer OEM services.


Our Company:
Ningbo Doway M&E Co., Ltd. is built in Ningbo China, which is established in 2000. We specialized in manufacturing brass & bronze valves and fittings, water meter accessories and pipe fittings. Our mainly products cover ball valves, angle valves, gate valves, check valves, bib cocks, marine valves, pipe fittings, PPR insert, radiator valves and fittings, camlock and grooved couplings etc.

Nowadays, we are involving in the fields of brass forged, brass investment casting, bronze sand casting, brass/bronze gravity casting etc. Our products are widely used in water and plumbing systems and well recognized in Europe, USA, Middle East and Other Land with competitive price, quality products, and considerate service. Our company passed ISO9001 Certification and CE Approval for our ball valves, and UL approval for our bronze ball valves.

Based on the Spirit "Honesty, Pragmatic, Innovation", we are proud to own one professional team and provided customers competitive prices, quality products with On Time Delivery. Also we have strong OEM and ODM ability for clients to supply various valves and fittings in brass & bronze material for water solution.

Ningbo Doway M&E Co., Ltd is seeking to be the best cooperator for water plumbing and improve its worth to customers. Please contact us freely to know more details about what we can bring to your sourcing operation.
