DW-LB056
-
OEM
-
8481804090
-
Ningbo, China
-
10000PCS Per Month
-
L/C, T/T, Western Union, Paypal
Description:

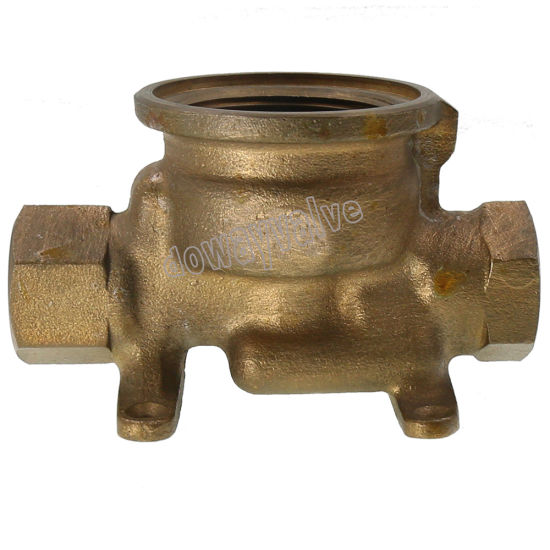

Brass forged body, brass ball chrome plated, brass stem and brass handle. For water meter before or after water meter PTFE packing with free nut and DECA fittings.

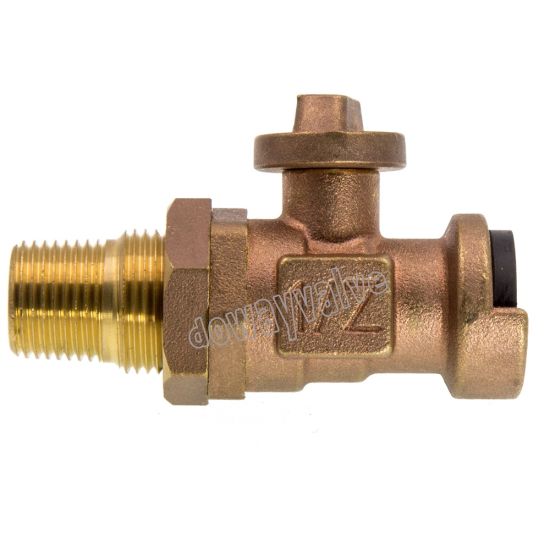

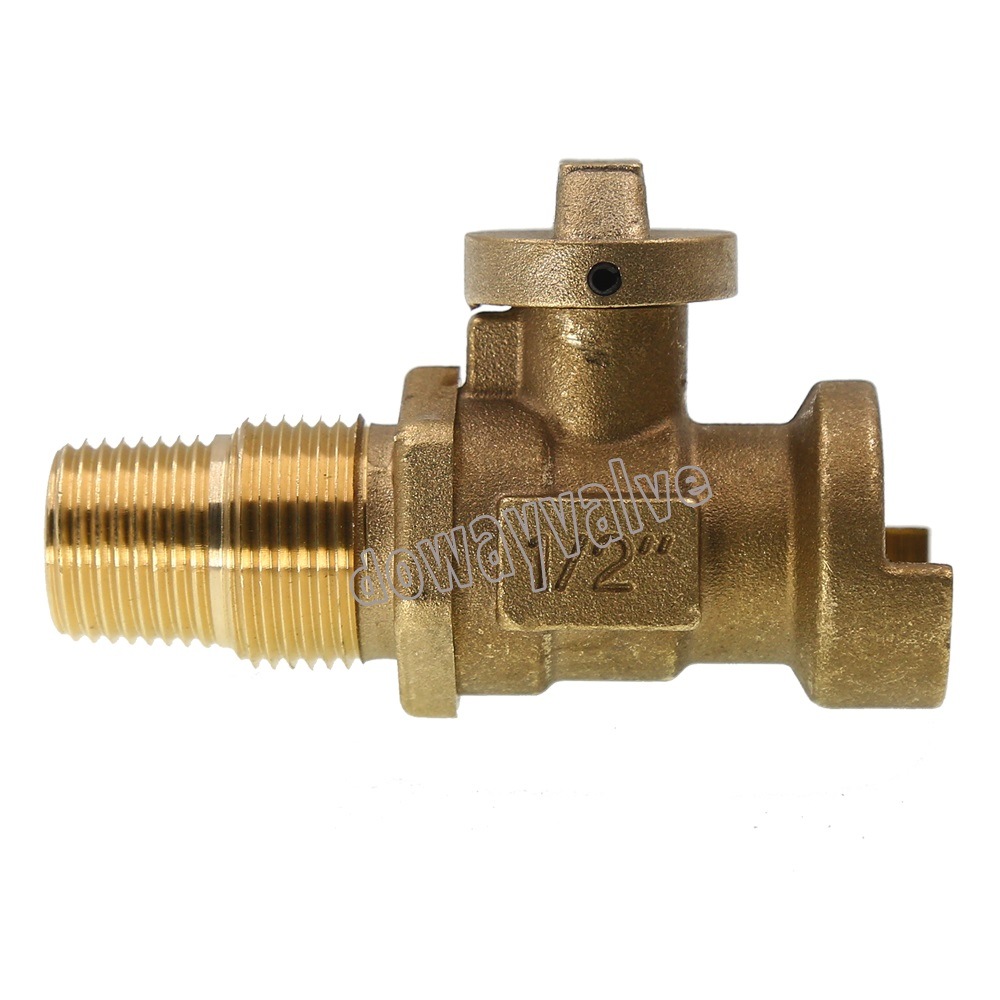

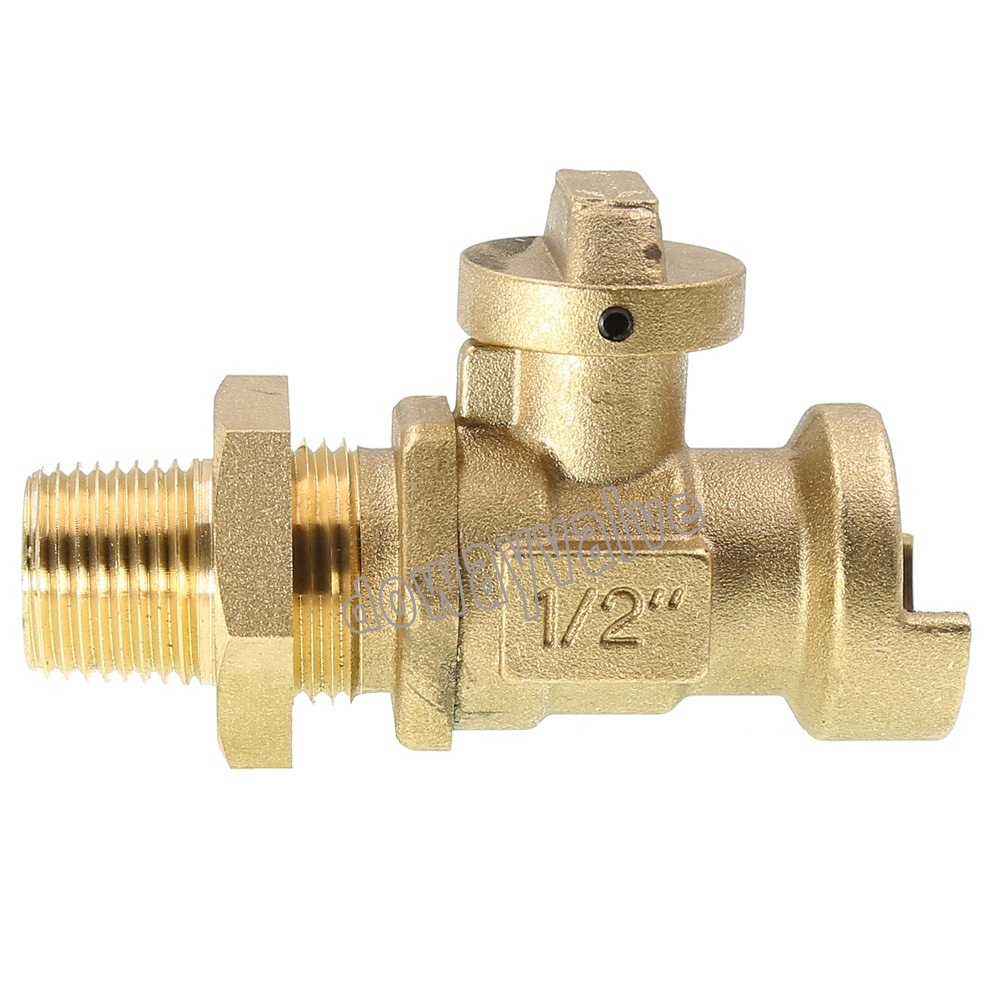

Brass lockable ball valve for water meter with female thread, with brass body, anti-theft short or long handle.
For the handle, it could be changed to magnetic Type, Brass Handle, or Zinc Alloy Handle
1. Application: House connection and drinking meter networks.
2. Material: Forged Brass (CW617N, CW614, CW602N, ASTM C37700)
3. Size: DN15x3/4"xD20mm, DN15x3/4"xD25mm, DN20x1"xD20mm, DN20x1"xD25mm
4. Thread Standard: Free Nut according to ISO228, ISO7/1, DIN2999/DECA fittings
5. Package Details: Each valve by one polybag, inner box, cartons with pallets
Technical Specification:
| Working Pressure | 1.6Mpa |
| Tested Pressure | 2.0Mpa |
| Working Medium | Water, oil, gas |
| Working Temperature | -20° C≤ T≤ 120° C |
FAQ:
1. What is your term of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
2. How about your delivery time?
A: It usually takes 15 to 30 days, which generally depends on the quantity of your order and our storage.
3. Can I get free samples?
A: Yes, send your address, your telephone number, post code, and express account number to us, and tell us which samples you need and samples specification.
4. Can you produce products with my own brand?
A: Yes, we can offer OEM services.
