Cast Bronze Union Female Inlet Dual Check Valve (DW-CV036)

Price: $ 1.35
  • DW-CV036
  • OEM
  • 8481804090
  • Ningbo, China
  • 120000PCS/Month
  • L/C, T/T, Paypal

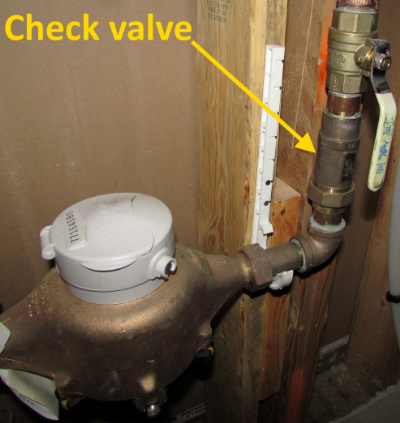

Dual Check Valves prevent the reverse flow of polluted water from entering into the drinking water supply at the service entrance or at individual outlets. They are designed for non-health hazard residential water system containment and continuous pressure applications. The valves consist of a Lead Free cast copper silicon alloy body construction, with two compact replaceable plastic check modules, and stainless steel springs. They are installed immediately downstream of the residential water meter, in a vertical or horizontal position.

1. Body: Bronze
2. Discs: Santoprene
3. Seals: EPDM
4. Springs: Stainless steel
5. Function: Prevents backflow
6. Size: 1/2"-1"
7. Connection Type: Union female x female
8. Thread Type: NPT
9. Installation: Vertically or horizontally

10. Delivery Time: within 30~45 days after received payment.
11. Payment Terms: T/T (30% payment in advance, the balance is paid at the sight of B/L copy).
12. Package: Inner box, outer carton, then by pallet.

Technical Specifications:

Temperature Range 33˚F - 180˚F (0.5˚C-82˚C) continuous
Minimum Working Pressure 10psi (69 kPa)
Maximum Working Pressure 175psi (12.07 bar)

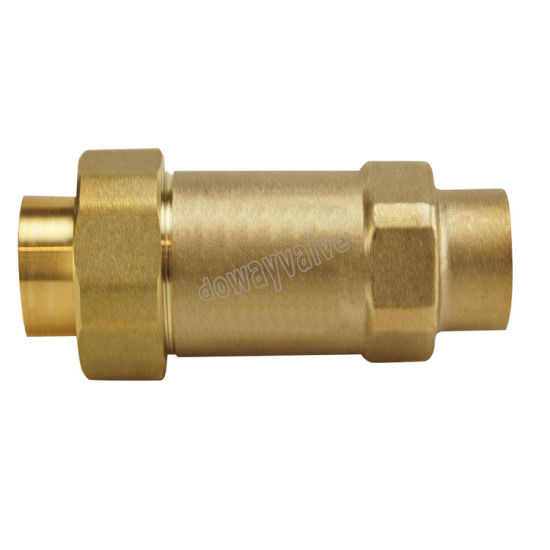

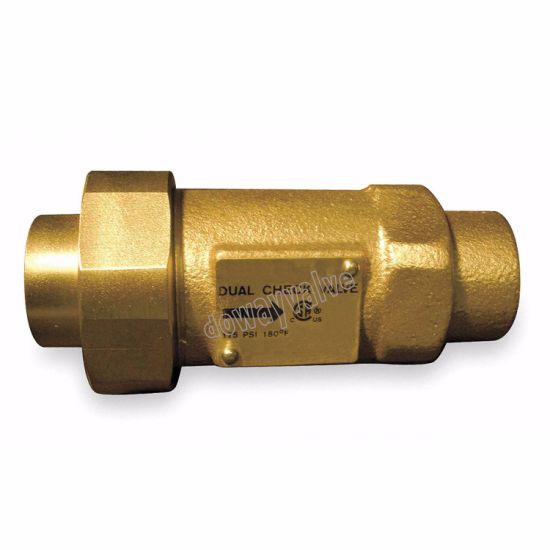

Cast Bronze Union Female Inlet Dual Check Valve

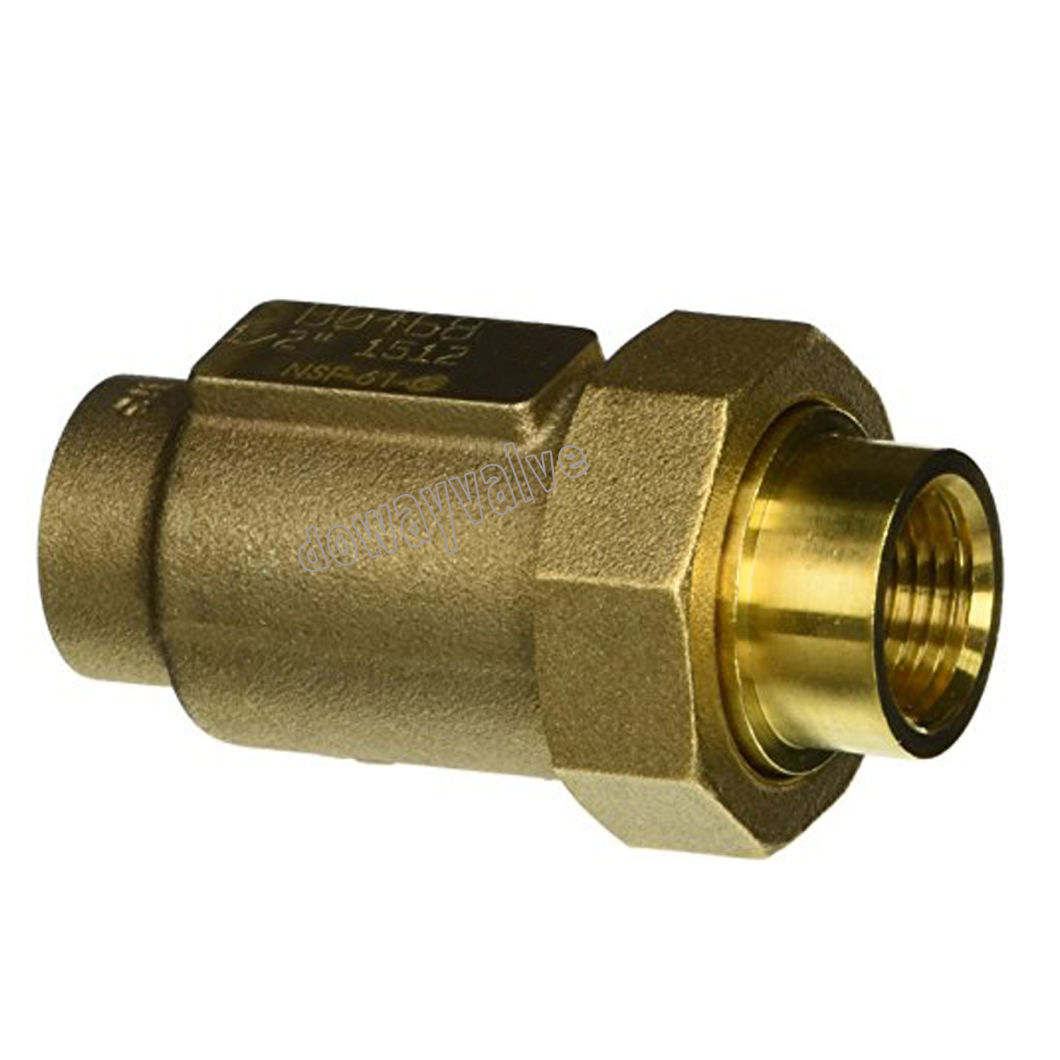

Cast Bronze Union Female Inlet Dual Check Valve
