China Factory Dzr Ball Valve Female with MDPE Pipe Connection (DW-BV004)

Price: $ 2.75
Availability:
  • DW-BV004
  • OEM
  • 8481804090
  • Ningbo, China
  • 10000PCS Per Month
  • L/C, T/T, Western Union, Paypal

富文本-宁波杜威机电1富文本-宁波杜威机电4-1富文本-宁波杜威机电2富文本-宁波杜威机电3富文本-宁波杜威机电5-1

Product Description:
1. Material: Bronze (C83600, C84400)
2. Size:
15mm x 20mm ,20mm x 20mm ,25mm x 20mm ,25mm x 25mm
3. Handle: Lockable butterfly handle
4. Package: Each valve by one polybag, inner box, cartons with pallets
5. Deliverry Time:
Within 30~45days after received payment
6. Payment Term: T/T(30% payment in advance,the balance is paid at the sight of B/L coppy), paypal, western union(like sample order ) and L/C .

Technical Specification:

Working Pressure 1.6Mpa
Tested Pressure 2.0Mpa
Working Medium Water, oil, gas
Working Temperature -20° C≤ T≤ 120° C

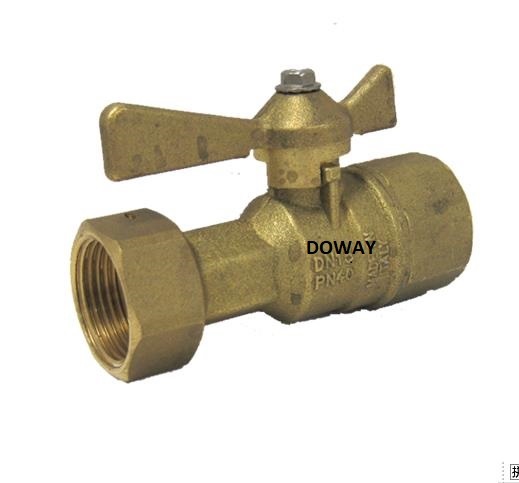

China Factory Dzr Ball Valve Female with MDPE Pipe Connection

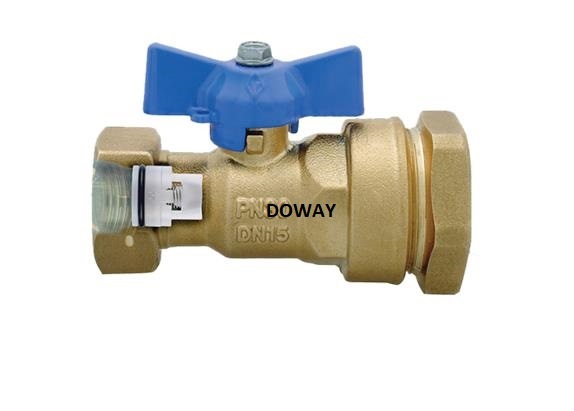

China Factory Dzr Ball Valve Female with MDPE Pipe Connection

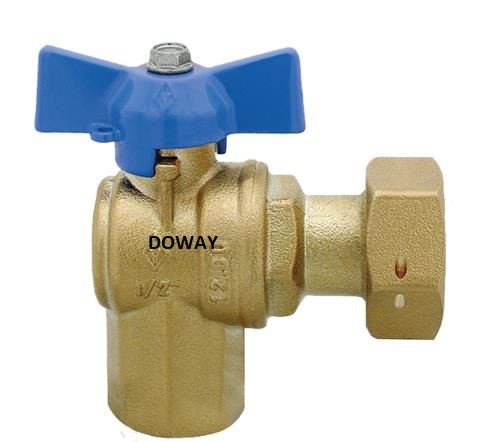

China Factory Dzr Ball Valve Female with MDPE Pipe Connection

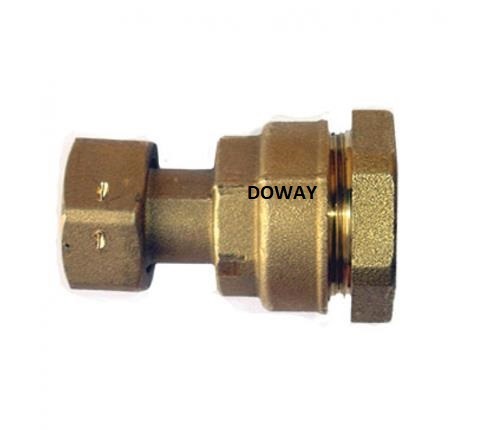

China Factory Dzr Ball Valve Female with MDPE Pipe Connection

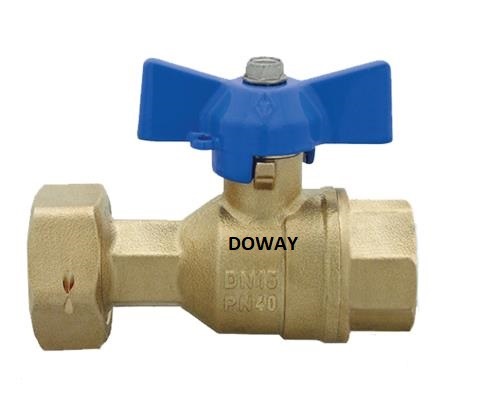

China Factory Dzr Ball Valve Female with MDPE Pipe Connection

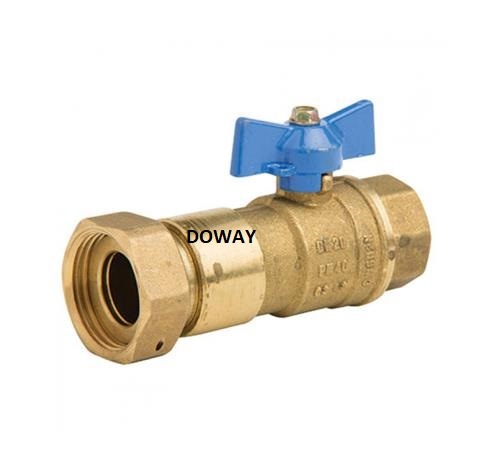

China Factory Dzr Ball Valve Female with MDPE Pipe Connection

Installation Instruction:

1 Before Installing the valves, clean and remove any objests from the pipes
2 Ensure both connection pipes either side of valves and aligned
3 Ensure that two sections of the pipe match, and the valves until will not accept any

gaps, any distroy in the pipes may affect the tighting of the connection, The work

of the vales and can even casue a rupture. To be sure, place the kit in position to

ensure the assembling will work
4 Before starting the fittings, ensure the threads and tappings are clean
5 If secton of pipes have not their final support in that place, They can be temporatily

fixed, In order to avoid unnecessary strain on the valves
6 The theoretical lenghts gived by ISO7/1 for the tapping are typically longer than

required, The length of the thread should be limited, and check that the end of tube

does not press right up to the head of the thread
7 For the sealing assembly valves pipes, it is essential to use products that are

compatible with the requirements of the clean water meter
8 Position the pipe clips on both side of the valves
9 If mounting on an air conditioning with Per tubing and hoses, it is is necessary

to support the tubes and hoses with the fixed to abvoid strain on valves
10 When screwing the valves, ensure you only rotate on screws side by the 6 ended

side, Use an open ended spanner or an adjustable spanner and not a monkey

wrench. Never use a vice to tighten the fixing of the valves
11 Do not over tighten the valves, Do not block with any extensions as it may cause a

rupture or weekening of the forging strenght. The Torque force not more than 30Nm

General Guidelings:

1 Ensure that the valves to be used are appropriate for the condition of the installation
2 Be sure to have enough valve to be able to isolate the section of pipes as well as

the approciate equipment for maintenance and repair
3 Ensure that valves to be installed are of correct strenght to be able to support the

capacity of their usage
4 Installation of all circuits should ensure their function can be automatically tested on

a regular basis ( at least two times per year)

富文本-宁波杜威机电7富文本-宁波杜威机电8富文本-宁波杜威机电6FAQ:
1. What is your term of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
2. How about your delivery time?
A: It usually takes 15 to 30 days, which generally depends on the quantity of your order and our storage.
3. Can I get free samples?
A: Yes, send your address, your telephone number, post code, and express account number to us, and tell us which samples you need and samples specification.
4. Can you produce products with my own brand?
A: Yes, we can offer OEM services.
