China Factory OEM Wholesale Stainless Steel 3PC Body Ball Valve (DW-SS005)

Price: $ 3.75
Availability:
  • DW-SS005
  • OEM
  • 8481804090
  • Ningbo, China
  • 50000PCS/Month
  • L/C, T/T, Paypal

富文本-宁波杜威机电1富文本-宁波杜威机电4-1富文本-宁波杜威机电2富文本-宁波杜威机电3富文本-宁波杜威机电5-1

Commodity Name: China Factory OEM wholesale stainless steel 3pc body ball valve
Description: Brass forged/ S.S body, brass ball chrome plated/ S.S ball, brass/ S.S stem, for water treatment system, solar hotwater system and HVAC system

1. Application: Water treatment system, solar hotwater system and HVAC system
2. Material: Forged Brass (CW617N, CW614, CW602N, ASTM C37700) or S/S304 or S/S316
3. Surface: Brass color, nickle plated are available
4. Size: 1/2'', 3/4'', 1'', 11/4'', 11/2'', 2'',  21/2'', 3'',4''
5. Thread standard:  according to ISO228, ISO7/1, DIN2999, or NPT

6. Delivery Time: within 30~45 days after received payment.
7. Payment Terms: T/T (30% payment in advance, the balance is paid at the sight of B/L copy).
8. Package: Inner box, outer carton, then by pallet.

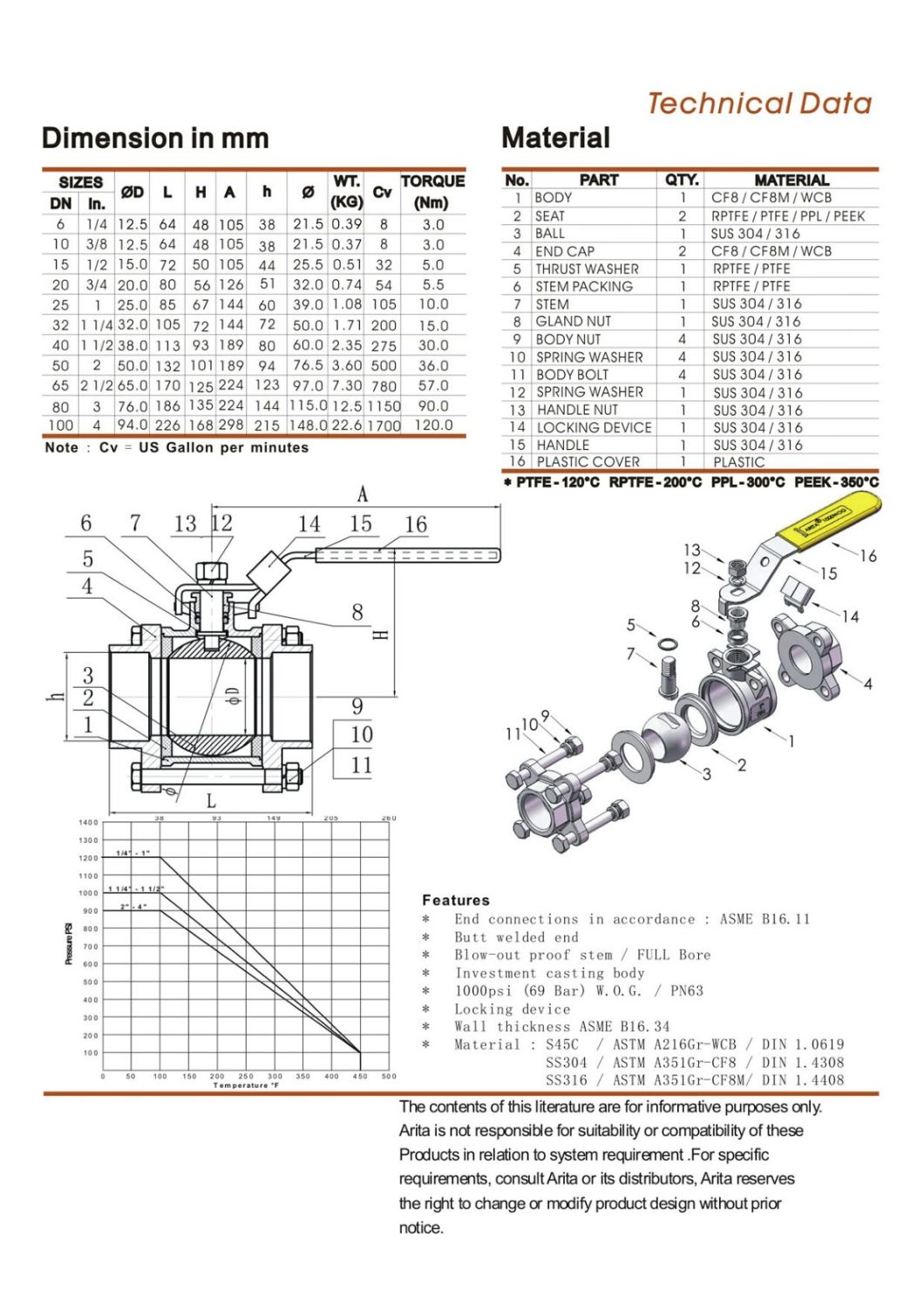

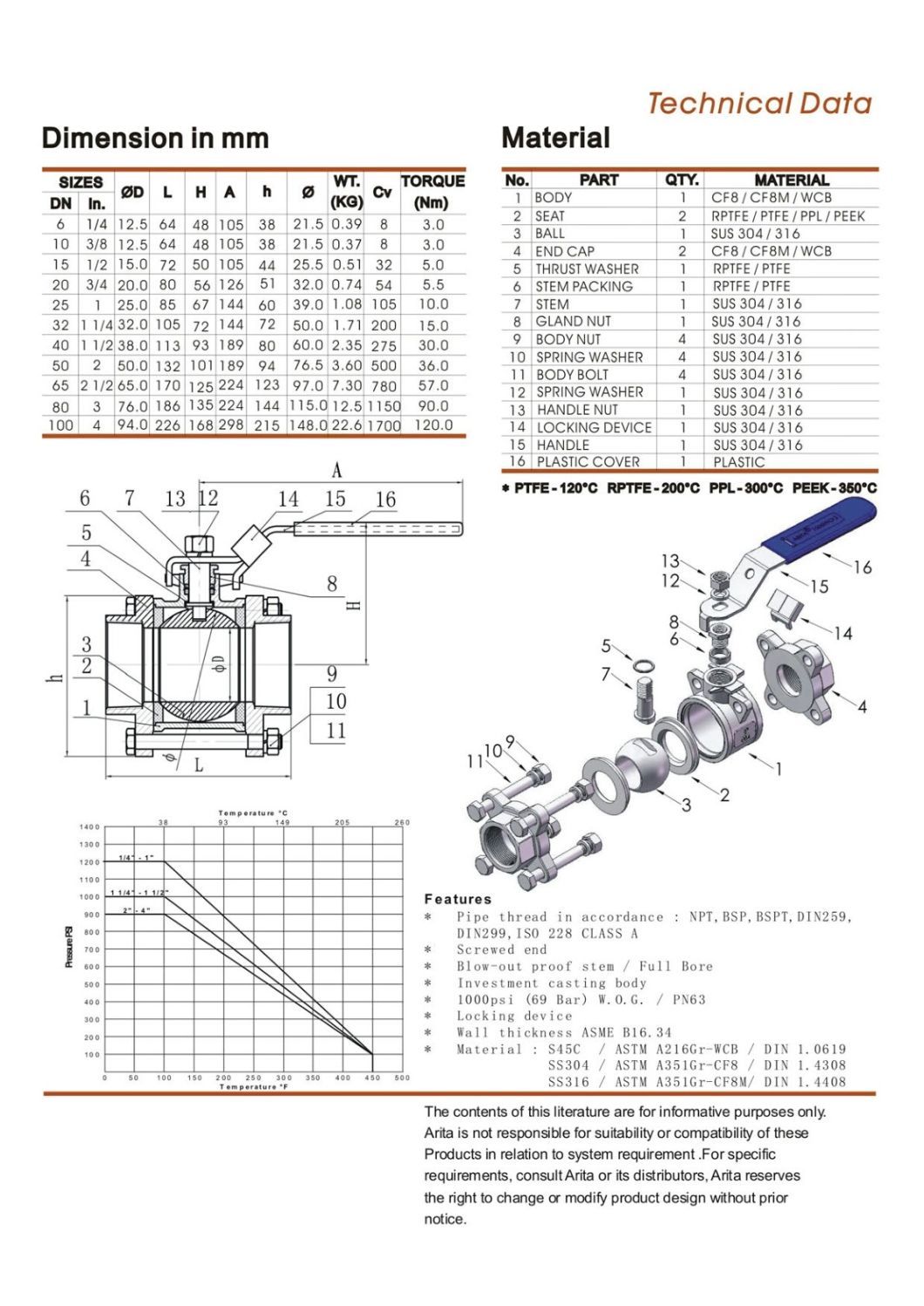

Technical Specification:

Working Pressure 2.0Mpa /300LBS
Tested Pressure 2.0Mpa
Working Medium Water, oil, gas
Working Temperature -20° C≤ T≤ 160° C

China Factory OEM Wholesale Stainless Steel 3PC Body Ball Valve
China Factory OEM Wholesale Stainless Steel 3PC Body Ball Valve
China Factory OEM Wholesale Stainless Steel 3PC Body Ball Valve
China Factory OEM Wholesale Stainless Steel 3PC Body Ball Valve
China Factory OEM Wholesale Stainless Steel 3PC Body Ball Valve
China Factory OEM Wholesale Stainless Steel 3PC Body Ball Valve
China Factory OEM Wholesale Stainless Steel 3PC Body Ball Valve

富文本-宁波杜威机电7富文本-宁波杜威机电8富文本-宁波杜威机电6FAQ:
1. What is your term of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
2. How about your delivery time?
A: It usually takes 15 to 30 days, which generally depends on the quantity of your order and our storage.
3. Can I get free samples?
A: Yes, send your address, your telephone number, post code, and express account number to us, and tell us which samples you need and samples specification.
4. Can you produce products with my own brand?
A: Yes, we can offer OEM services.
