Copper/ Brass Stainless Steel Plastic Float Ball Valve for Water Storage Tank Sump (DW-F203)
-
DW-F203
-
OEM
-
8481804090
-
Ningbo, China
-
50000PCS/Month
-
L/C, T/T, Western Union
Product Description:
Brass forged body, NBR rubber gasket,brass nut, brass beg, brass lever and PVC ball.
The water level of water tower or pool is controlled by curve arm and float ball brake, which is easy to maintain, flexible and durable, with high level control accuracy, the water level is not disturbed by water pressure, and the water level is tight and watertight.
The working principle of
Floats always want to float on the water, when the water rises, floats also rise. As it floats up, it drives the link up. The connecting rod is connected to a valve at the other end, and when raised to a certain position, the rod supports a rubber piston pad to seal off the water supply. When the water level drops, float also drops, even dry and drive the piston pad to open.
1. Application: Water tank and reservoir.
2. Material: normal brass ,CW617, DZR,lead free,low lead brass available
3. Size: DN15, DN20, DN25 DN40 DN50
4. Thread Standard: BSP or NPT
5. Delivery Time: within 30~45 days after received payment.
6. Payment Terms: T/T (30% payment in advance, the balance is paid at the sight of B/L copy).
7. Package: Inner box, outer carton, then by pallet.

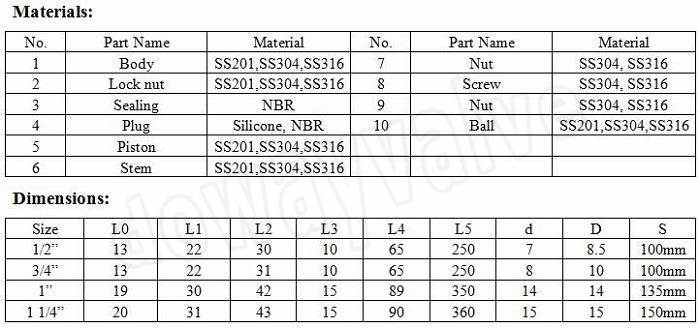

Technical Specification:
| Working Pressure | 0.2-1.6Mpa |
| Tested Pressure | 1.6Mpa |
| Working Medium | Water, oil, gas |
| Working Temperature | -10° C≤ T≤ 90° C |
Dimensions are for reference only and can be customized according to requirements.
FAQ:
1. What is your term of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
2. How about your delivery time?
A: It usually takes 15 to 30 days, which generally depends on the quantity of your order and our storage.
3. Can I get free samples?
A: Yes, send your address, your telephone number, post code, and express account number to us, and tell us which samples you need and samples specification.
4. Can you produce products with my own brand?
A: Yes, we can offer OEM services.
Our Company:
Ningbo Doway M&E Co., Ltd. is built in Ningbo China, which is established in 2000. We specialized in manufacturing brass & bronze valves and fittings, water meter accessories and pipe fittings. Our mainly products cover ball valves, angle valves, gate valves, check valves, bib cocks, marine valves, pipe fittings, PPR insert, radiator valves and fittings, camlock and grooved couplings etc.
Nowadays, we are involving in the fields of brass forged, brass investment casting, bronze sand casting, brass/bronze gravity casting etc. Our products are widely used in water and plumbing systems and well recognized in Europe, USA, Middle East and Other Land with competitive price, quality products, and considerate service. Our company passed ISO9001 Certification and CE Approval for our ball valves, and UL approval for our bronze ball valves.
Based on the Spirit "Honesty, Pragmatic, Innovation", we are proud to own one professional team and provided customers competitive prices, quality products with On Time Delivery. Also we have strong OEM and ODM ability for clients to supply various valves and fittings in brass & bronze material for water solution.
Ningbo Doway M&E Co., Ltd is seeking to be the best cooperator for water plumbing and improve its worth to customers. Please contact us freely to know more details about what we can bring to your sourcing operation.
