DW-LB049
-
OEM
-
8481804090
-
Ningbo, China
-
10000PCS Per Month
-
L/C, T/T, Western Union, Paypal
Description:

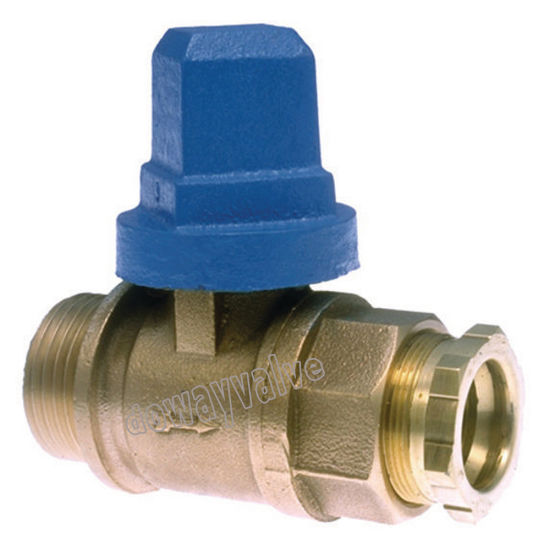

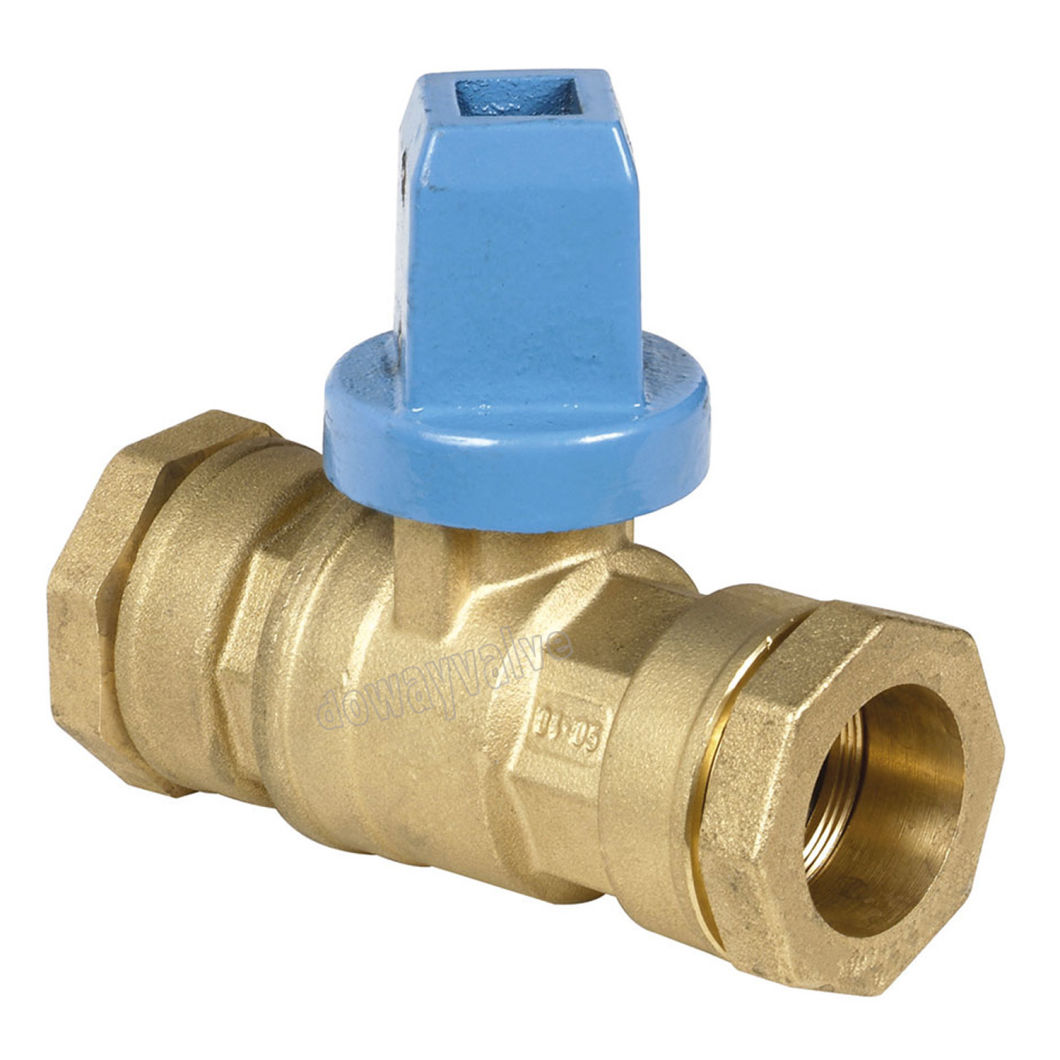

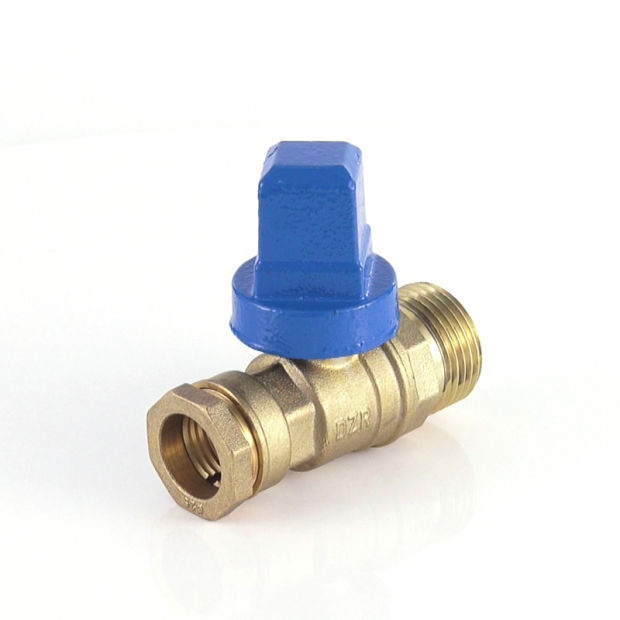

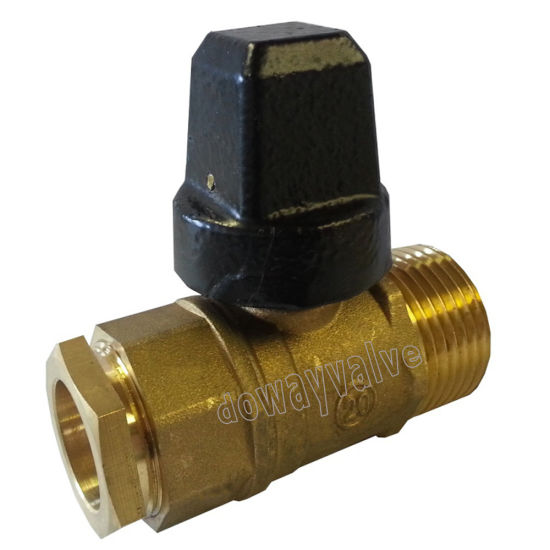

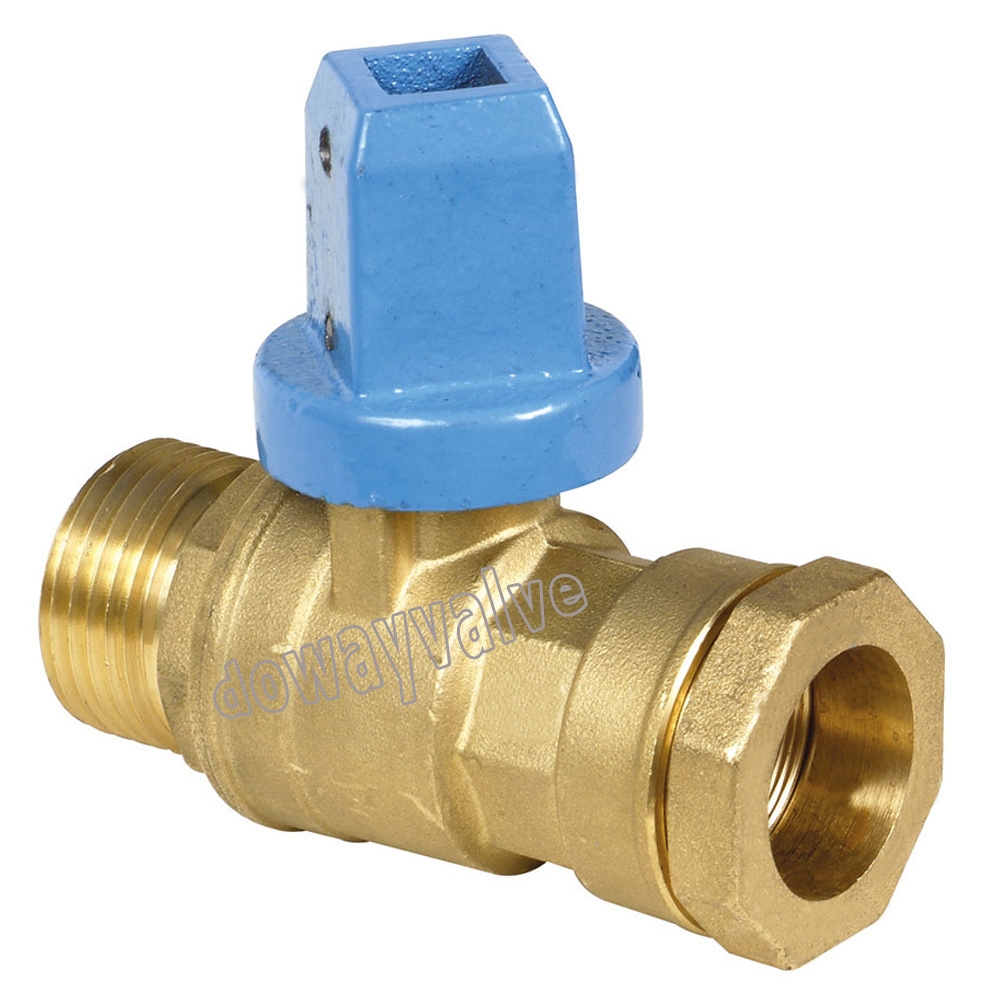

DRZ PEC VALVE
CW602N Brass Valve
Robinet de Prise en Charge PEC
BALL VALVE MEETS ACS STANDARD

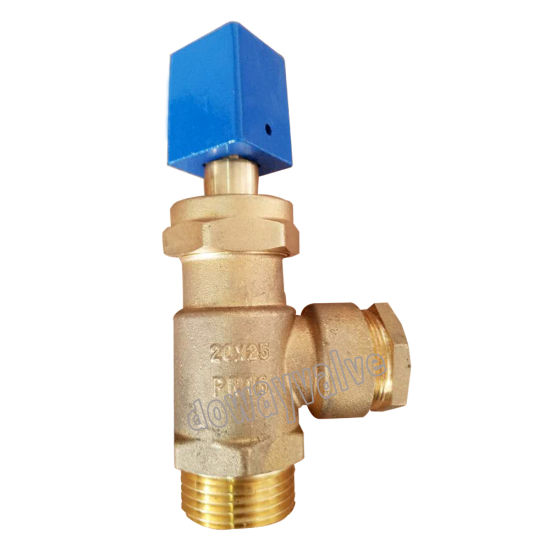

ANGLE STOP VALVE WITH CW602N

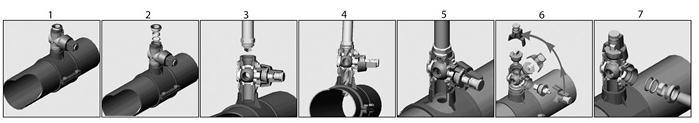

1. Application: It is a part of water supply system, allows you to join it on pipe instantly without stopping the flow of water during operation.
2. Material: Brass (CW602N, CW617N)
3. Handle: Cast iron square cap
4. Size: DN15 x PE20 x M40*3
DN20 x PE25 x M40*3
DN25 x PE32 x M40*3
DN25 x PE32 x M55*3
DN32 x PE40 x M55*3
DN40 x PE50 x M55*3

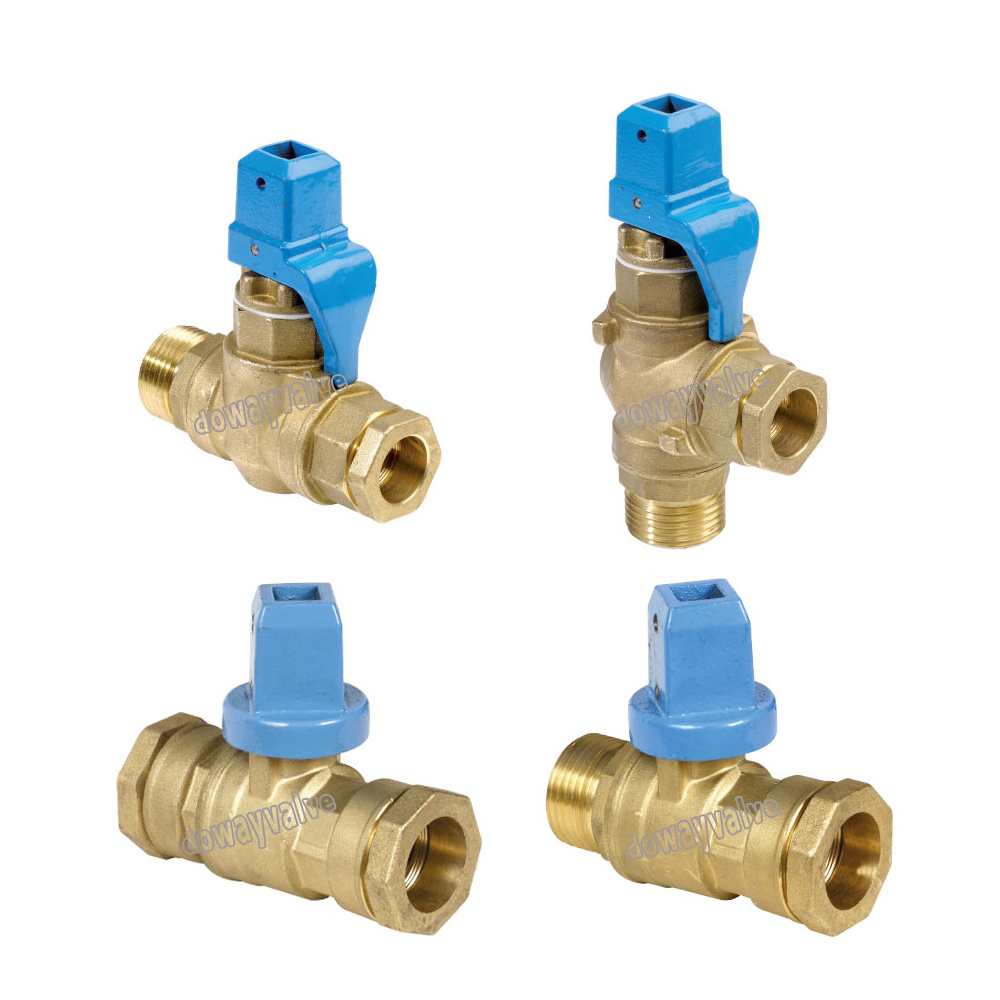

5. Channel: Straight through type and angle type.
6. Package Details: Each valve by one polybag, inner box, cartons with pallets.
7. Delivery Time: within 30~45days after received payment.
8. Payment Term: T/T(30% payment in advance, the balance is paid at the sight of B/L copy).
Technical Specification:
| Working Pressure | 1.6Mpa |
| Tested Pressure | 2.0Mpa |
| Working Medium | Water |
| Working Temperature | -20° C≤ T≤ 120° C |
FAQ:
1. What is your term of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
2. How about your delivery time?
A: It usually takes 15 to 30 days, which generally depends on the quantity of your order and our storage.
3. Can I get free samples?
A: Yes, send your address, your telephone number, post code, and express account number to us, and tell us which samples you need and samples specification.
4. Can you produce products with my own brand?
A: Yes, we can offer OEM services.
