Universal type B claw coupling, US type Air Hose Coupling
Air Hose Coupling are recommended to be used in the transfer of air and or water.
The application should be in an open system where the air or water is in motion (dynamic) and not in a closed pressurized (static) condition. This dynamic application involves continuous flow,
therefore, back pressure would be relieved by the very nature of the application.
The applicable system should contain pressure relief valves to relieve any excess pressure.
Safety clips and safety cables should be installed on either side of the coupling connection.

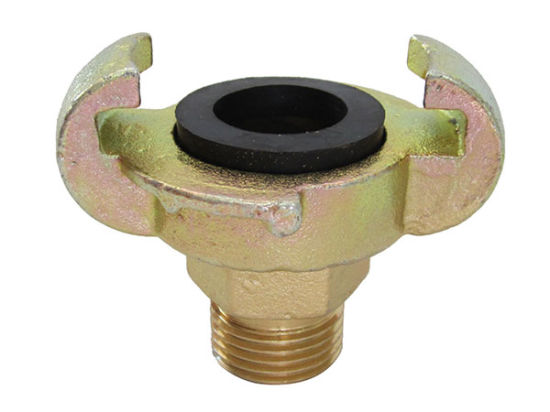

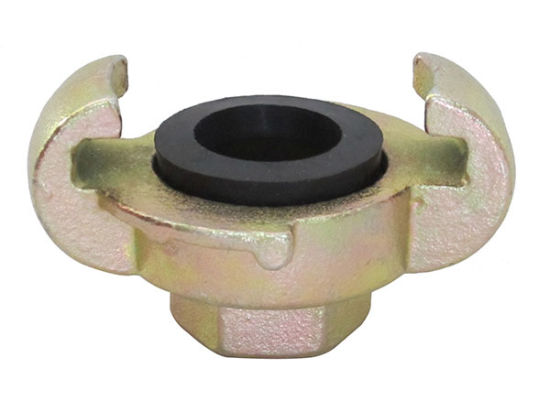

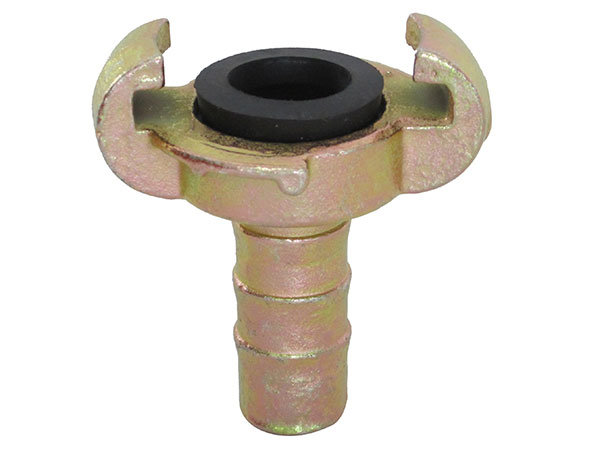

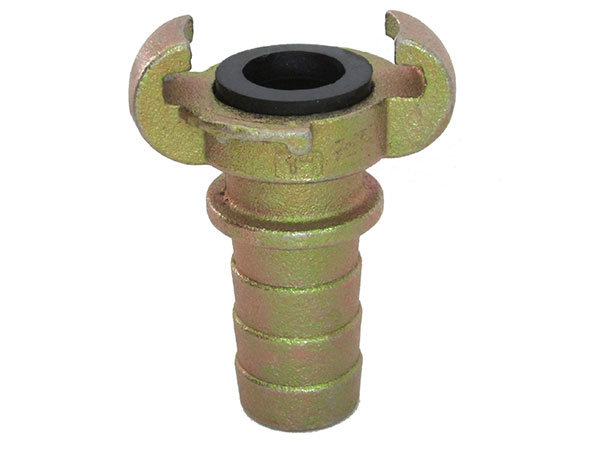

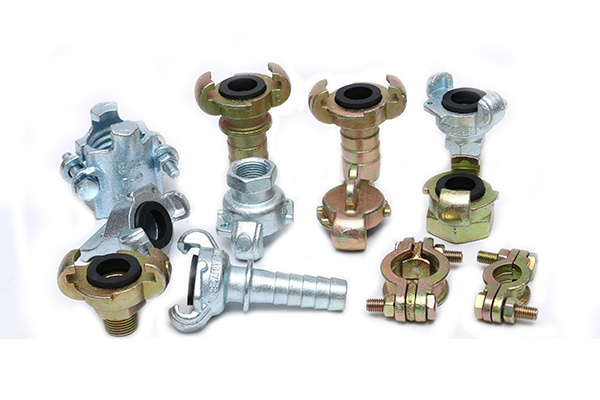

1. Casting Air hose coupling(Universal aircoupling)
Universal air coupling US type, Chicagocoupling(Type B) /European type(Type A)/ Austrilian stand (type S)
Casting method: Investment casting/Sandcasting
2. Sizes: From 1/4" to 2" (1/4", 3/8", 1/2", 1", 1-1/4", 1-1/2", 2")
3. Parts:
Male end
Female end
Hose end W/O collar
Hose end With collar
Two lugs, four lugs
| Material available | Carbon steel zn plated, Stainless steel, malleable cast iron |
| Size | 1/4"-1" for two lug, 11/4"-2" for four lug |
| Sealing | NBR |
| Thread type | NPT, BSP |
| Working pressure | 10bar |
| Max test pressure | 16bar |
