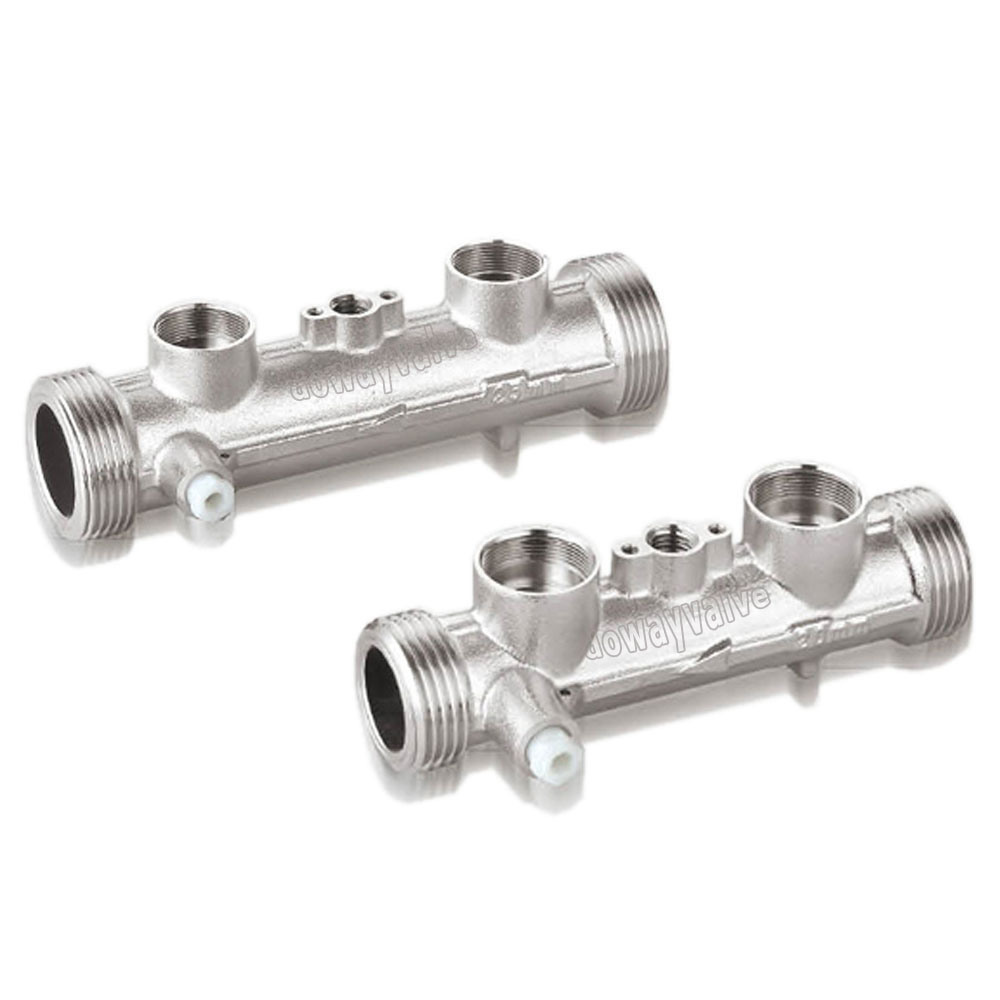

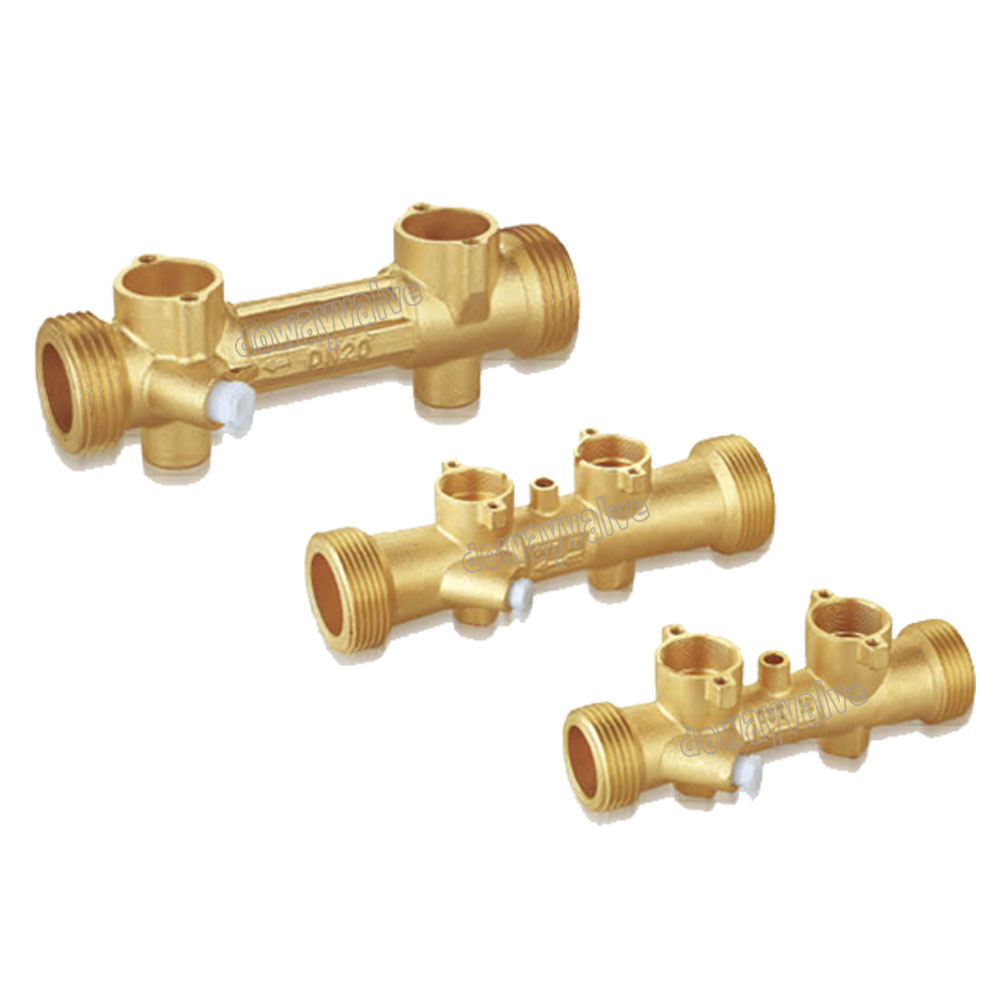

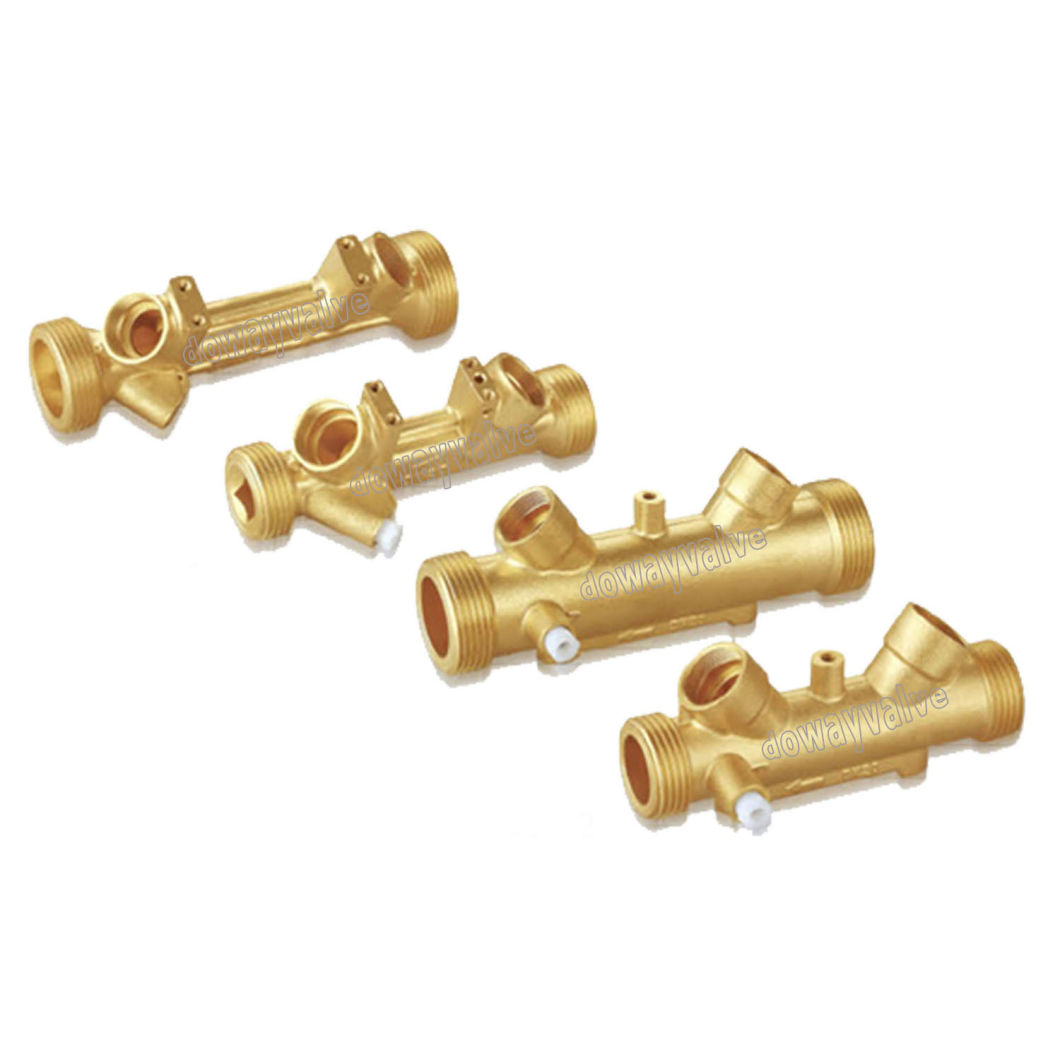

Forged Brass Heat Meter Base Table Tube (DW-WC033)

Price: $ 1
  • DW-WC033
  • OEM
  • 7412209000
  • Ningbo, China
  • 170000PCS/Month
  • L/C, T/T, Paypal

Product Description:
1. Description: Brass forged ultrasonic heat meter spare part, brass tube
2. Material: Forged Brass (CW617N, CW602N)
3. Size: DN20-DN40
4. Length: 130mm-200mm.
5. Transducer hole size: φ21*9.2mm 17.2*1.5 or made as customer's need.

6. Thread: ISO228, ISO7/1
7. Application: Water flow.

8. Delivery Time: Within 30~45 days after received payment.
9. Payment Terms: T/T (30% payment in advance, the balance is paid at the sight of B/L copy).
10. Package: Inner box, outer carton, then by pallet.

Technical Specification:

Working Pressure 1.6Mpa
Tested Pressure 1.0Mpa By Gas
Working Medium Water
Working Temperature -20° C≤ T≤ 120° C

Technical Parameter:

Diameter Tube Length Screw Threads Teansducer Hole Size Core Remarks
DN20 130 mm G 1 " B Φ21x9.2mm 17.2x1.5
customized available
Nozzle Φ14x46mm Transducer fixed by M23x1 Copper pressing ring
DN25 160 mm G 1 1/4" B Nozzle Φ17x60mm
DN32 180 mm G 1 1/2" B Nozzle Φ22.5x60mm
DN40 200 mm G 2" B Nozzle Φ28.5x60mm

Forged Brass Heat Meter Base Table Tube
Forged Brass Heat Meter Base Table Tube
Forged Brass Heat Meter Base Table Tube

Forged Brass Heat Meter Base Table Tube
Forged Brass Heat Meter Base Table Tube

1. What is your term of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
2. How about your delivery time?
A: It usually takes 15 to 30 days, which generally depends on the quantity of your order and our storage.
3. Can I get free samples?
A: Yes, send your address, your telephone number, post code, and express account number to us, and tell us which samples you need and samples specification.
4. Can you produce products with my own brand?
A: Yes, we can offer OEM services.
