High Quanltiy Guillemin Hose Connector Malle with Latch(DWC301)

Price: $ 2.99
Availability:
  • DWC301
  • OEM
  • 76090000000
  • Ningbo, China
  • 160000PCS/Month
  • L/C, T/T, Western Union, Paypal

Product Description:

Casting Aluminum Guillemin Couplings  hose end Type: Hose Shank, Helical Hose Shank, Helical Hose Shank (With Ferrule), Male Helical Hose Shank, Female W/O Latch, Female With Latch, Male W/O Latch, Male With Latch, Cap (With Chain), Choke Plug (With Chain) and Reducing Coupling.

Guillemin (sometimes called Symmetric or French) is a system in which both halves of the couplings are identical.

Most couplings come with a locking ring and claws, and are connected by putting the two halves together and

then turning the locking rings so that they tighten up behind the claws. However, there are some couplings which have no claws, these can still be connected to other couplings that do have claws  Also there are some couplings that have no locking ring.

Item Casting Aluminum Guillemin Couplings  hose end, France Type  Aluminum Guillemin Couplings, Aluminum Guillemin Quick Coupling
Size 1-1/2", 2", 2-1/2", 3", 4" (From DN40 to DN100)
Casting Method Gravity casting or Precision casting(silica sol)
Surface Treatment Polishing or sand-blast
Thread BSP (We usually make the female thread parallel BSPP, male thread tapered BSPT)
Seal NBR, EPDM, Viton, PTFE envelop gasket and other materials are available on request.
Main Body Material Aluminum (heat treated), Brass, Stainless Steel
Working Pressure 16bar/230psi
Test Pressure 30bar/435bar
Minimum Burst Pressure 50bar/725psi
Standard EN 14420-8/NF E 29-572

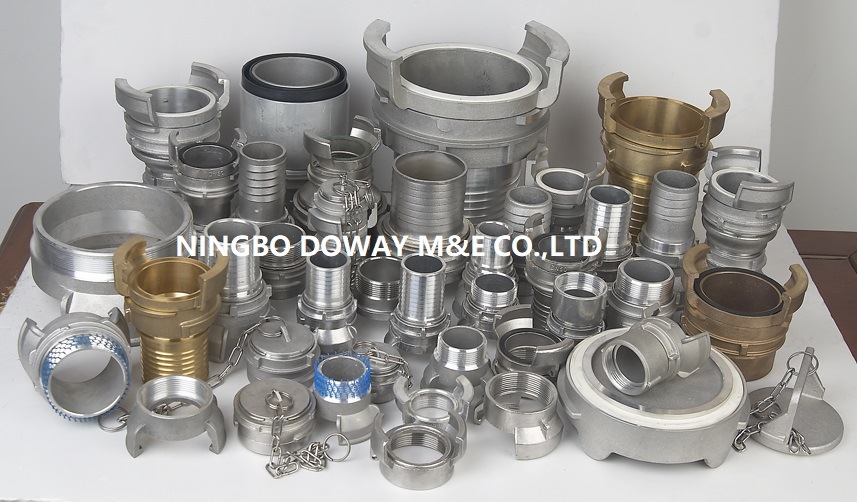

High Quanltiy Guillemin Hose Connector Malle with Latch

FAQ:
1. What is your term of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
2. How about your delivery time?
A: It usually takes 15 to 30 days, which generally depends on the quantity of your order and our storage.
3. Can I get free samples?
A: Yes, send your address, your telephone number, post code, and express account number to us, and tell us which samples you need and samples specification.
4. Can you produce products with my own brand?
A: Yes, we can offer OEM services.


Our Company:
Ningbo Doway M&E Co., Ltd. is built in Ningbo China, which is established in 2000. We specialized in manufacturing brass & bronze valves and fittings, water meter accessories and pipe fittings. Our mainly products cover ball valves, angle valves, gate valves, check valves, bib cocks, marine valves, pipe fittings, PPR insert, radiator valves and fittings, camlock and grooved couplings etc.

Nowadays, we are involving in the fields of brass forged, brass investment casting, bronze sand casting, brass/bronze gravity casting etc. Our products are widely used in water and plumbing systems and well recognized in Europe, USA, Middle East and Other Land with competitive price, quality products, and considerate service. Our company passed ISO9001 Certification and CE Approval for our ball valves, and UL approval for our bronze ball valves.

Based on the Spirit "Honesty, Pragmatic, Innovation", we are proud to own one professional team and provided customers competitive prices, quality products with On Time Delivery. Also we have strong OEM and ODM ability for clients to supply various valves and fittings in brass & bronze material for water solution.

Ningbo Doway M&E Co., Ltd is seeking to be the best cooperator for water plumbing and improve its worth to customers. Please contact us freely to know more details about what we can bring to your sourcing operation.
