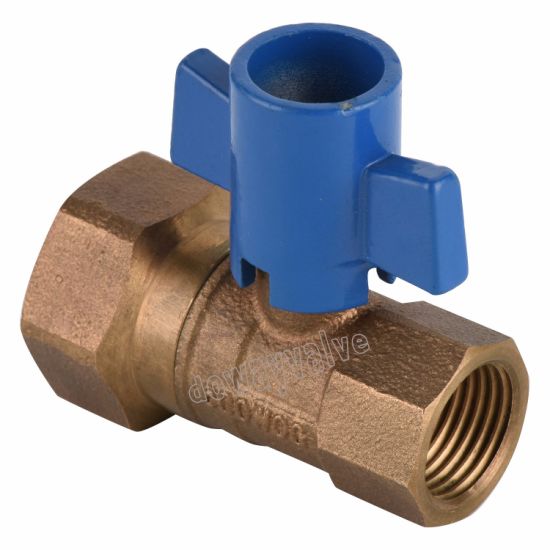

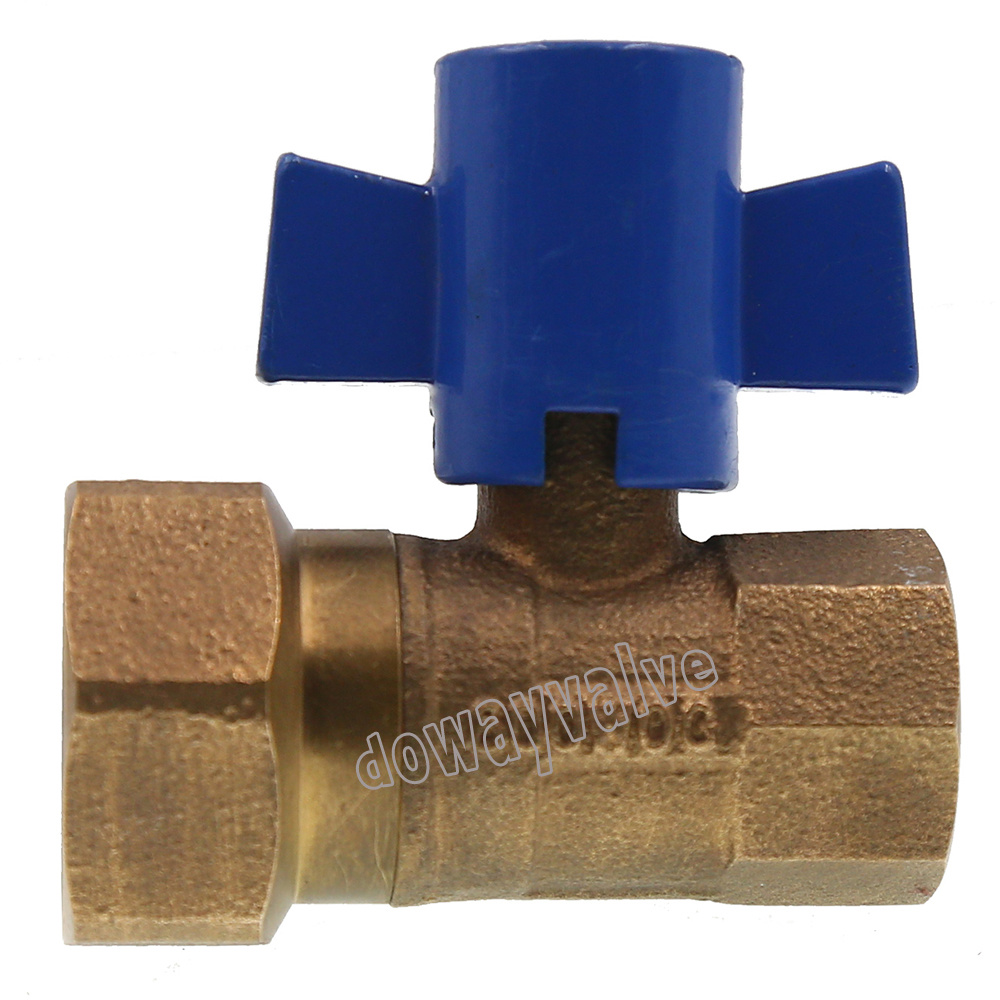

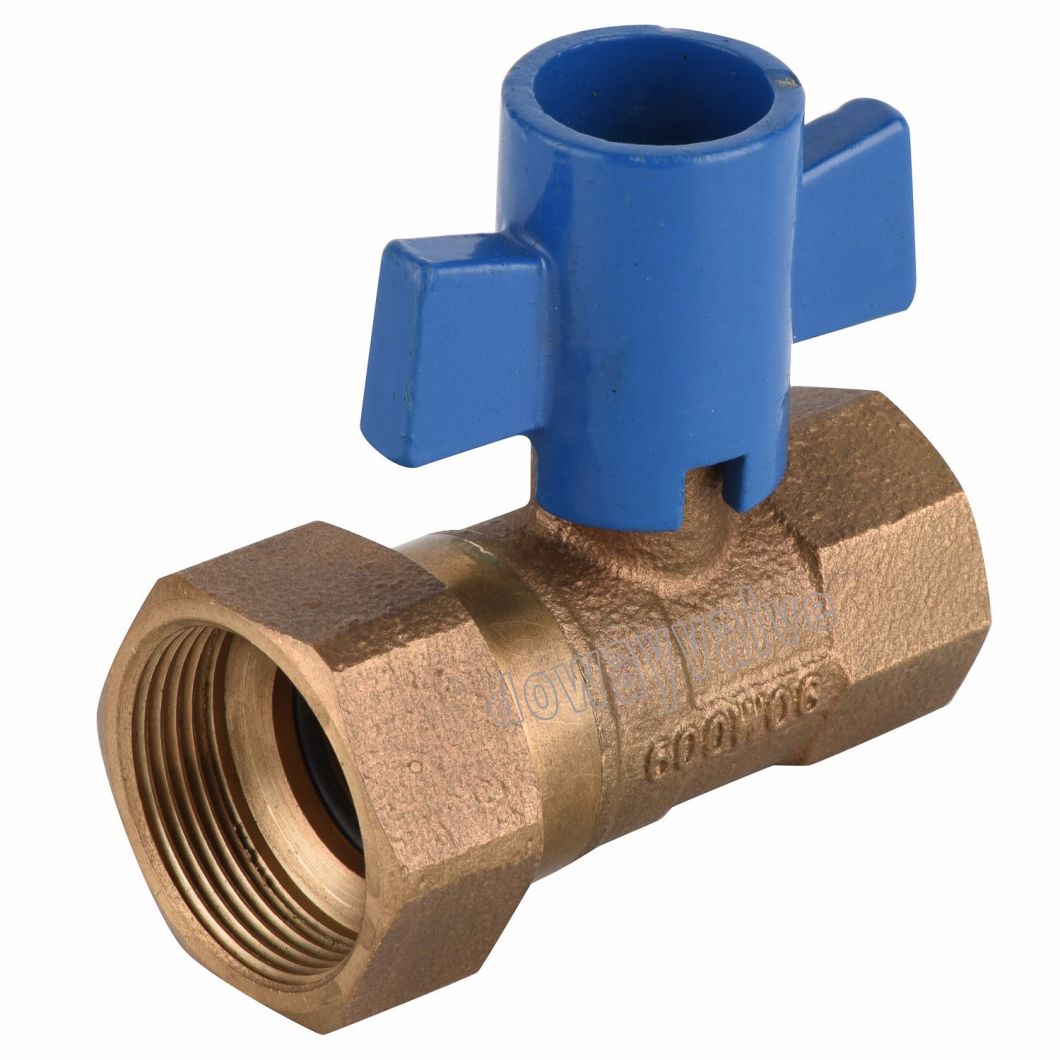

Reduced Bronze Lockable Ball Valve with Screw (DW-BV026)

Price: $ 3.98

Availability:



Add to Cart

Model:
DW-BV026
Brand:
OEM
Code:
8481804090
Port:
Ningbo, China
Production Capacity:
10000PCS Per Month
Payment Terms:
L/C, T/T, Western Union, Paypal

Product Description

Product Description:
1. Material: Bronze (C83600, C84400)
2. Size: 1/2" x 3/4", 3/4"x 1"
3. Handle: Lockable butterfly handle
4. Package: Each valve by one polybag, inner box, cartons with pallets
5. Deliverry Time: Within 30~45days after received payment
6. Payment Term: T/T(30% payment in advance,the balance is paid at the sight of B/L coppy), paypal, western union(like sample order ) and L/C.

Technical Specification:

Working Pressure	1.6Mpa
Tested Pressure	2.0Mpa
Working Medium	Water, oil, gas
Working Temperature	-20° C≤ T≤ 120° C

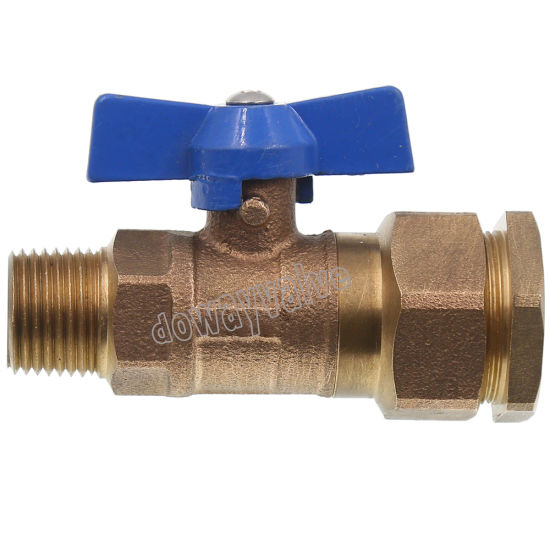

Reduced Bronze Lockable Ball Valve with Screw

Installation Instruction:

1	Before Installing the valves, clean and remove any objests from the pipes
2	Ensure both connection pipes either side of valves and aligned
3	Ensure that two sections of the pipe match, and the valves until will not accept any
	gaps, any distroy in the pipes may affect the tighting of the connection, The work
	of the vales and can even casue a rupture. To be sure, place the kit in position to
	ensure the assembling will work
4	Before starting the fittings, ensure the threads and tappings are clean
5	If secton of pipes have not their final support in that place, They can be temporatily
	fixed, In order to avoid unnecessary strain on the valves
6	The theoretical lenghts gived by ISO7/1 for the tapping are typically longer than
	required, The length of the thread should be limited, and check that the end of tube
	does not press right up to the head of the thread
7	For the sealing assembly valves pipes, it is essential to use products that are
	compatible with the requirements of the clean water meter
8	Position the pipe clips on both side of the valves
9	If mounting on an air conditioning with Per tubing and hoses, it is is necessary
	to support the tubes and hoses with the fixed to abvoid strain on valves
10	When screwing the valves, ensure you only rotate on screws side by the 6 ended
	side, Use an open ended spanner or an adjustable spanner and not a monkey
	wrench. Never use a vice to tighten the fixing of the valves
11	Do not over tighten the valves, Do not block with any extensions as it may cause a
	rupture or weekening of the forging strenght. The Torque force not more than 30Nm

General Guidelings:

1	Ensure that the valves to be used are appropriate for the condition of the installation
2	Be sure to have enough valve to be able to isolate the section of pipes as well as
	the approciate equipment for maintenance and repair
3	Ensure that valves to be installed are of correct strenght to be able to support the
	capacity of their usage
4	Installation of all circuits should ensure their function can be automatically tested on
	a regular basis ( at least two times per year)
