TYPE B
-
OEM
-
7609000000
-
Ningbo, China
-
160000PCS/Month
-
L/C, T/T, Western Union, Paypal

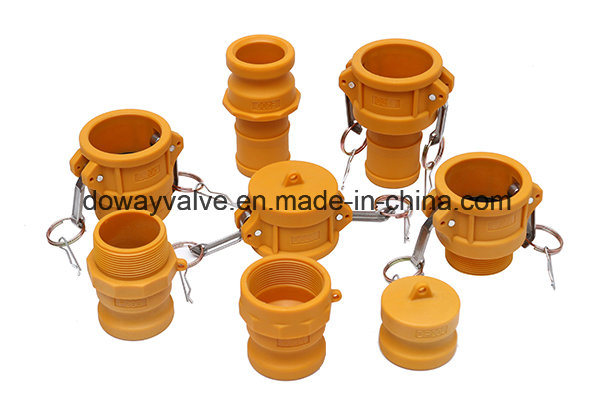

Nylon Camlock Coupler Type B - Female Coupler × Male NPT Thread
Type B nylon camlock couplers are often used with Type F, A, E & DP (Dust Plug) to connect garden hose, suction hoses and other low pressure hoses to pumps, tanks or equipment. Nylon cam & groove couplings are equipped with stainless steel handle, steel pins, rings and safety clips as well as NBR or EPDM sealing gaskets. Remember to check if the gasket is compatible with the media to be carried.
Nylon camlock coupler type B
Compared with metal camlock fittings, nylon camlock fittings share multiple advantages such as high resistance to cross threading, impact, warpage and crushing. What is more, they are totally electrically inert - no sparks or galvanic action.
Product description:
| Material | Fiber reinforced nylon; |
| Temperature Range | -30 °F to +200 °F (-34.4°C to +93.3 °C); |
| Working Pressure | Depends on sizes and temperatures; |
| Thread | NPT/BSP; |
| Handles | Stainless steel 316; |
| Pin & Rings | Steel or stainless steel; |
| Gasket | EPDM, NBR or as required. |
| Packaging | Cartons; |
| Standard | MIL-C-27487; |
| MOQ | 500 pcs. |
Applications:
Available to chemical coolants, gasoline, water, varnishes, slurry mixture and some powders.
Remark: All camlock couplings are not allowed for compressed air applications.
Table 1: Specification of Nylon Camlock Coupler Type B
| Picture | Size (inch) | A (mm) | B (mm) | E (mm) | G (mm) | |
| 1/2 | 15 | 54 | 34 | 50 | ||
| 3/4 | 18 | 54 | 34 | 50 | ||
| 1 | 24 | 60 | 41 | 60 | ||
| 1-1/4 | 33 | 70 | 46 | 77 | ||
| 1-1/2 | 37 | 72 | 50 | 82 | ||
| 2 | 49 | 82 | 56 | 94 | ||
| 2-1/2 | 63 | 85 | 56 | 107 | ||
| 3 | 76 | 89 | 59 | 127 | ||
| 4 | 98 | 95 | 60 | 160 | ||
1. What is your term of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
2. How about your delivery time?
A: It usually takes 15 to 30 days, which generally depends on the quantity of your order and our storage.
3. Can I get free samples?
A: Yes, send your address, your telephone number, post code, and express account number to us, and tell us which samples you need and samples specification.
4. Can you produce products with my own brand?
A: Yes, we can offer OEM services.
Our Company:
Ningbo Doway M&E Co., Ltd. is built in Ningbo China, which is established in 2000. We specialized in manufacturing brass & bronze valves and fittings, water meter accessories and pipe fittings. Our mainly products cover ball valves, angle valves, gate valves, check valves, bib cocks, marine valves, pipe fittings, PPR insert, radiator valves and fittings, camlock and grooved couplings etc.
Nowadays, we are involving in the fields of brass forged, brass investment casting, bronze sand casting, brass/bronze gravity casting etc. Our products are widely used in water and plumbing systems and well recognized in Europe, USA, Middle East and Other Land with competitive price, quality products, and considerate service. Our company passed ISO9001 Certification and CE Approval for our ball valves, and UL approval for our bronze ball valves.
Based on the Spirit "Honesty, Pragmatic, Innovation", we are proud to own one professional team and provided customers competitive prices, quality products with On Time Delivery. Also we have strong OEM and ODM ability for clients to supply various valves and fittings in brass & bronze material for water solution.
Ningbo Doway M&E Co., Ltd is seeking to be the best cooperator for water plumbing and improve its worth to customers. Please contact us freely to know more details about what we can bring to your sourcing operation.
