Ningbo, China
-
160000PCS/Month
-
L/C, T/T, Western Union, Paypal

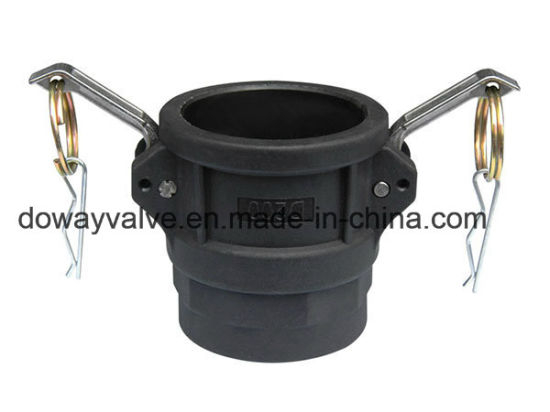

Black polypropylene Type D camlock coupler - Female coupler by Female NPT, is normally used with Type A, E, F & DP adapters of the same size. Polypropylene camlock coupling is often used to connect pumps, tanks, IBCs to low pressure suction or discharge hoses. Hand pressure is enough to install the coupling without any tools required.
Cam arms, pins and rings are made of stainless steel 304 or 316. Standard gaskets are Buna-N, EPDM, PTFE, Nitrile and silicone sealing gaskets are also provided.
Features:
1. Compatible with most chemicals & solvents;
2. Economical option;
3. Lightweight;
4. No tools needed.
Product description:
| Item | Type D coupler - Female Coupler by Female NPT; |
| Body Material | Polypropylene; |
| Handles & Pins | Stainless steel; |
| Thread | Standard NPT & BSP; |
| Working Pressure | Depends on size and temperature; |
| Temperature Range | -15°F to +200°F (Water); |
| Size | 1/2" to 4"; |
| MOQ | 500 pcs; |
Remark: Any polypropylene camlock is NOT allowed for compressed air applications.
Working pressure for polypropylene camlocks are greatly affected by the temperature. The data below is rated at ambient temperature. When the working temperature increases, the pressure will decrease sharply.
Table 1: Specification of Polypropylene Camlock Coupler Type D
| Picture | Size (inch) | A (mm) | B (mm) | C (mm) | E (mm) | G (mm) |
| 1/2 | 19 | 54 | 34 | 34 | 52 | |
| 3/4 | 21 | 54 | 34 | 34 | 52 | |
| 1 | 24 | 60 | 41 | 41 | 62 | |
| 1-1/4 | 33 | 70 | 59 | 46 | 78 | |
| 1-1/2 | 39 | 72 | 59 | 49 | 88 | |
| 2 | 49 | 83 | 71 | 55 | 98 | |
| 2-1/2 | 62 | 85 | 84 | 56 | 111 | |
| 3 | 77 | 90 | 102 | 60 | 132 | |
| 4 | 98 | 92 | 131 | 60 | 165 |
FAQ:
1. What is your term of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
2. How about your delivery time?
A: It usually takes 15 to 30 days, which generally depends on the quantity of your order and our storage.
3. Can I get free samples?
A: Yes, send your address, your telephone number, post code, and express account number to us, and tell us which samples you need and samples specification.
4. Can you produce products with my own brand?
A: Yes, we can offer OEM services.
Our Company:
Ningbo Doway M&E Co., Ltd. is built in Ningbo China, which is established in 2000. We specialized in manufacturing brass & bronze valves and fittings, water meter accessories and pipe fittings. Our mainly products cover ball valves, angle valves, gate valves, check valves, bib cocks, marine valves, pipe fittings, PPR insert, radiator valves and fittings, camlock and grooved couplings etc.
Nowadays, we are involving in the fields of brass forged, brass investment casting, bronze sand casting, brass/bronze gravity casting etc. Our products are widely used in water and plumbing systems and well recognized in Europe, USA, Middle East and Other Land with competitive price, quality products, and considerate service. Our company passed ISO9001 Certification and CE Approval for our ball valves, and UL approval for our bronze ball valves.
Based on the Spirit "Honesty, Pragmatic, Innovation", we are proud to own one professional team and provided customers competitive prices, quality products with On Time Delivery. Also we have strong OEM and ODM ability for clients to supply various valves and fittings in brass & bronze material for water solution.
Ningbo Doway M&E Co., Ltd is seeking to be the best cooperator for water plumbing and improve its worth to customers. Please contact us freely to know more details about what we can bring to your sourcing operation.
