American Type Hot Sale High Torque Compression Clamp(DWF130)

Price: $ 0.99
Availability:
  • DWF130
  • OEM
  • 82032000
  • Ningbo, China
  • 5000
  • L/C, T/T, Western Union, Paypal

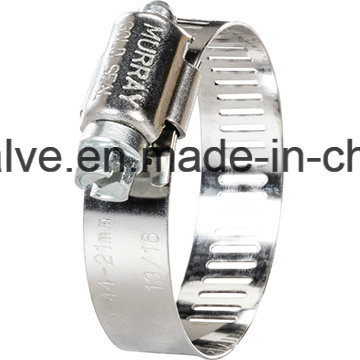

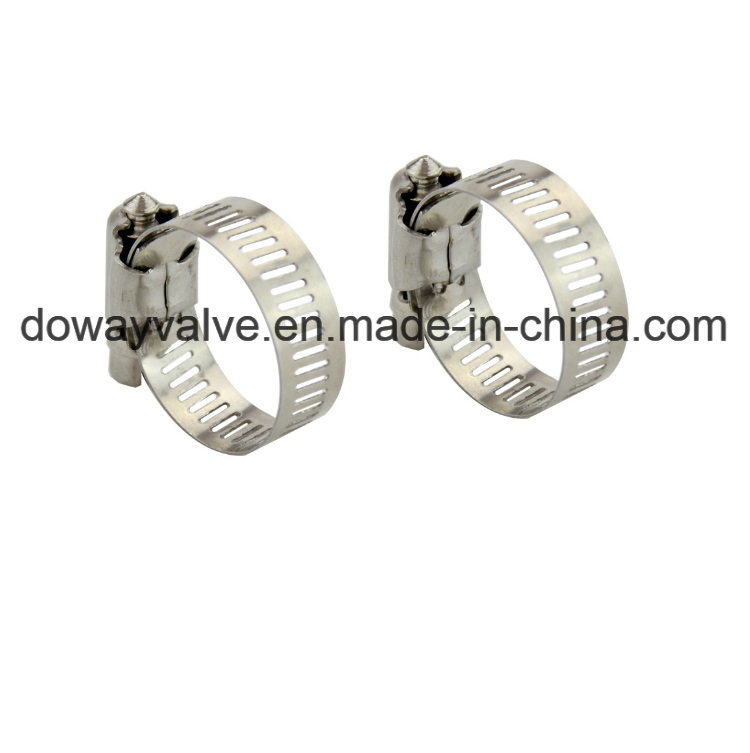

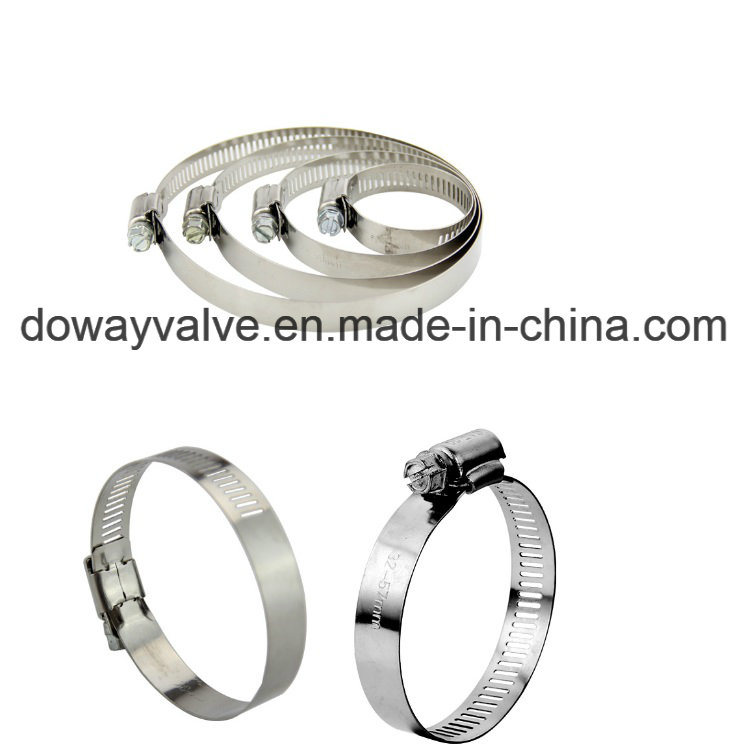

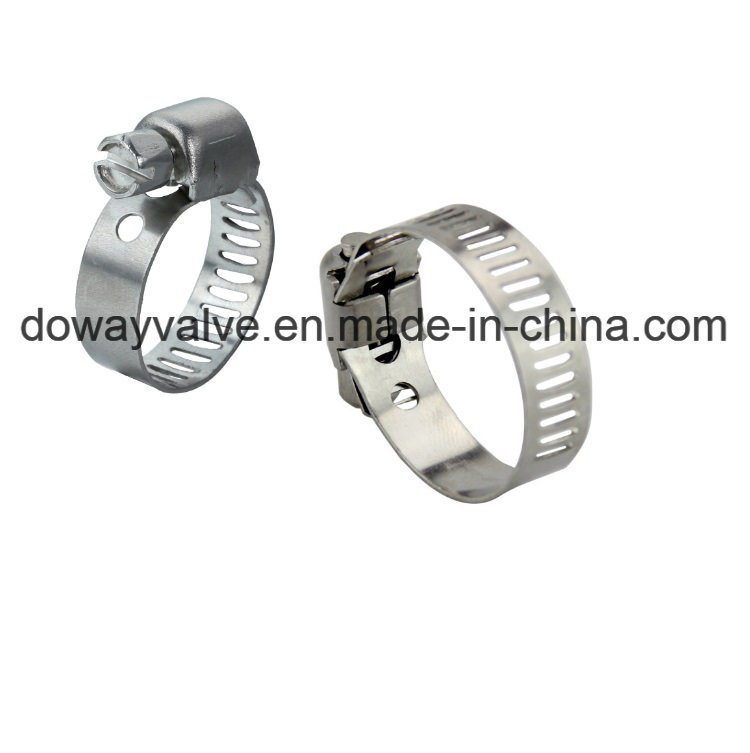

American Type Stainless Steel  Hose Clamp
Material Specifications
Screw: hex-head. Carbon steel or 400 / 200 / 300 grade stainless steel.
Carbon steel and stainless steel: SS201,SS301,SS304,SS316
Band's width: 8mm, thickness: 0.6mm and 12.7mm, thickness 0.6 and 0.7mm.
Band: band width 9/16". Carbon steel or 400 / 200 / 300 grade stainless steel.
Housing: Carbon steel or 400 / 200 / 300 grade stainless steel.

Delivery time: within 30~45days after received payment.
Payment terms: T/T (30% payment in advance, the balance is paid at the sight of B/L copy).
Package: Inner box, outer carton, then by pallet.



American Type Hot Sale High Torque Compression Clamp
American Type Hot Sale High Torque Compression Clamp
American Type Hot Sale High Torque Compression Clamp
American Type Hot Sale High Torque Compression Clamp

SIZE (inch) Size (mm) Band's width Qty/Ctn G.W. Dimension
mm pcs Kgs cm
3/8" 6-10mm 8 2500 14 39*21*15
1/2" 6-13mm 2500 14.5 39*22*16
5/8" 6-16mm 2500 15 39*23*17
3/4" 11-20mm 2500 15.5 39*24*18
7/8" 13-23mm 2500 16 39*25*18
1" 16-25mm 2000 14.5 40x26x18
1-1/16" 14-27mm 2000 15 40x26x20
1-1/4" 18-32mm 2000 16 40x26x24
3/4" 11-20mm 12.7 1000 17 50x30x16
7/8" 13-23mm 1000 18 50x30x16
1-1/16" 14-27mm 1000 19 50x30x18
1-1/4" 18-32mm 1000 20 50x32x21
1-1/2" 21-38mm 1000 21 50x30x21
1-3/4" 21-44mm 1000 22 50*30*26
2" 27-51mm 1000 23 50*30*28
2-1/4" 33-57mm 1000 24 50*30*30
2-1/2" 40-63mm 1000 25 50*30*32
2-3/4" 46-70mm 1000 26 50*30*34
3" 52-76mm 500 14 50x30x24
3-1/4" 59-82mm 500 14.5 50x30x37
3-1/2" 65-89mm 500 15 50x30x30
3-3/4" 72-95mm 500 15.5 50x30x44
4" 78-101mm 500 16 50x30x40
4-1/4" 84-108mm 500 16.5 50x30x50
4-1/2" 91-114mm 250 9.5 50x30x26
4-3/4" 95-120mm 250 10 50x30x30
5" 105-127mm 250 10.5 50x30x34
5-1/4" 110-134mm 250 11 50x30x37
5-1/2" 118-140mm 250 11.5 50x30x40
5-3/4" 125-146mm 250 12 50x30x43
6" 130-152mm 250 12.5 50x30x46
6 1/4" 133-159mm 250 13 50x30x48
6-1/2" 143-165mm 250 13.5 50x30x50
6 3/4" 146-171mm 250 14 50x30x54
7" 155-178mm 250 14.5 50x30x56


FAQ:
1. What is your term of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
2. How about your delivery time?
A: It usually takes 15 to 30 days, which generally depends on the quantity of your order and our storage.
3. Can I get free samples?
A: Yes, send your address, your telephone number, post code, and express account number to us, and tell us which samples you need and samples specification.
4. Can you produce products with my own brand?
A: Yes, we can offer OEM services.


Our Company:
Ningbo Doway M&E Co., Ltd. is built in Ningbo China, which is established in 2000. We specialized in manufacturing brass & bronze valves and fittings, water meter accessories and pipe fittings. Our mainly products cover ball valves, angle valves, gate valves, check valves, bib cocks, marine valves, pipe fittings, PPR insert, radiator valves and fittings, camlock and grooved couplings etc.

Nowadays, we are involving in the fields of brass forged, brass investment casting, bronze sand casting, brass/bronze gravity casting etc. Our products are widely used in water and plumbing systems and well recognized in Europe, USA, Middle East and Other Land with competitive price, quality products, and considerate service. Our company passed ISO9001 Certification and CE Approval for our ball valves, and UL approval for our bronze ball valves.

Based on the Spirit "Honesty, Pragmatic, Innovation", we are proud to own one professional team and provided customers competitive prices, quality products with On Time Delivery. Also we have strong OEM and ODM ability for clients to supply various valves and fittings in brass & bronze material for water solution.

Ningbo Doway M&E Co., Ltd is seeking to be the best cooperator for water plumbing and improve its worth to customers. Please contact us freely to know more details about what we can bring to your sourcing operation.
