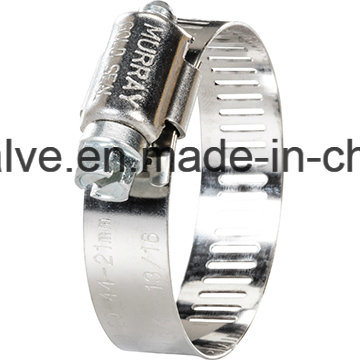

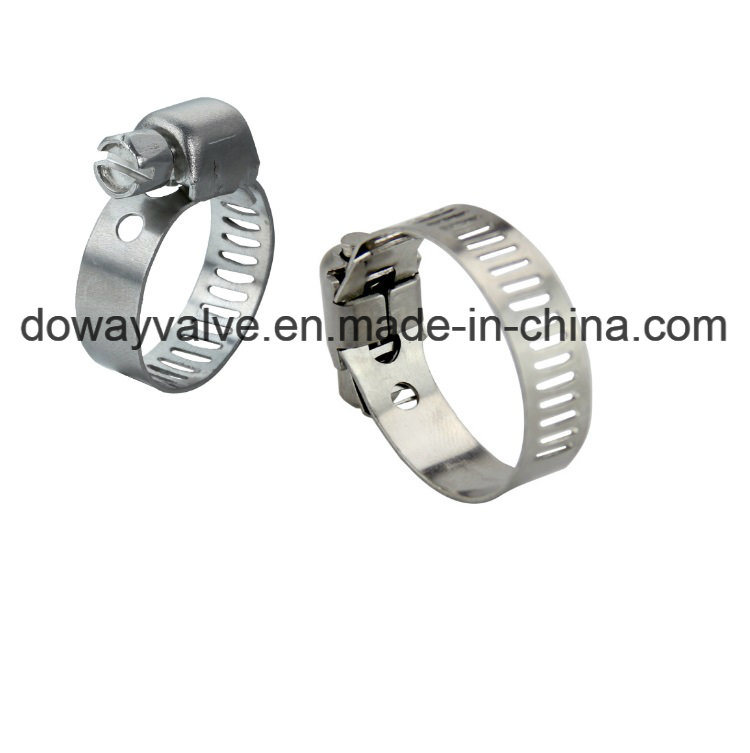

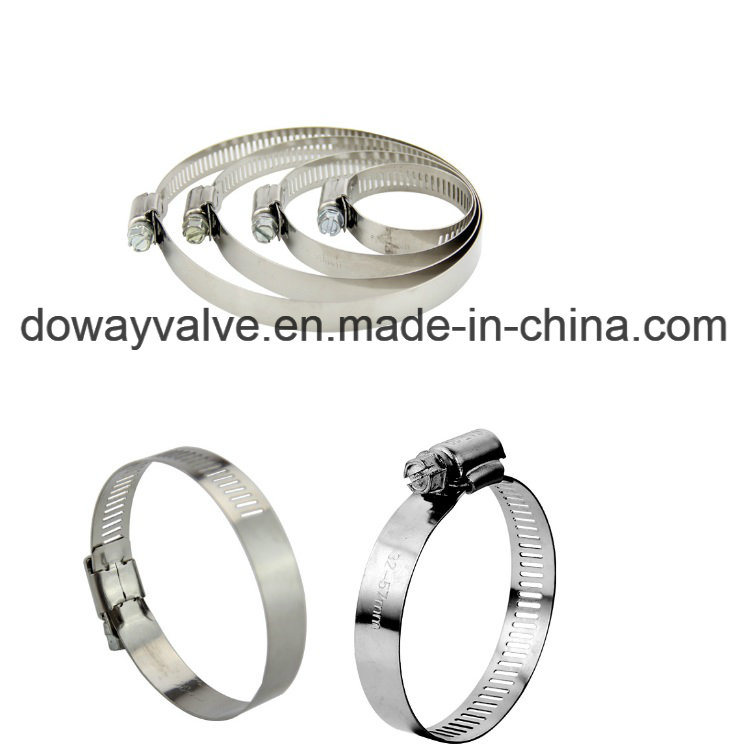

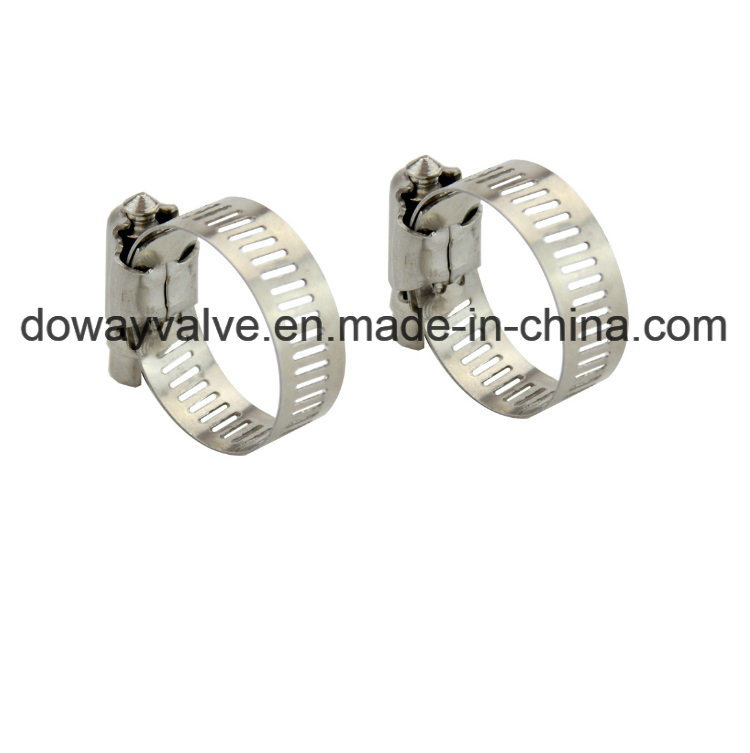

American Type Stainless Steel Quick Release Clamps(DW121)

Price: $ 0.99
Availability:
  • DWF121
  • OEM
  • 82032000
  • Ningbo, China
  • 5000
  • L/C, T/T, Western Union, Paypal

American Type Stainless Steel  Hose Clamp
Material Specifications
Screw: hex-head. Carbon steel or 400 / 200 / 300 grade stainless steel.
Carbon steel and stainless steel: SS201,SS301,SS304,SS316
Band's width: 8mm, thickness: 0.6mm and 12.7mm, thickness 0.6 and 0.7mm.
Band: band width 9/16". Carbon steel or 400 / 200 / 300 grade stainless steel.
Housing: Carbon steel or 400 / 200 / 300 grade stainless steel.


American Type Stainless Steel Quick Release Clamps
American Type Stainless Steel Quick Release Clamps
American Type Stainless Steel Quick Release Clamps
American Type Stainless Steel Quick Release Clamps

SIZE (inch) Size (mm) Band's width Qty/Ctn G.W. Dimension
mm pcs Kgs cm
3/8" 6-10mm 8 2500 14 39*21*15
1/2" 6-13mm 2500 14.5 39*22*16
5/8" 6-16mm 2500 15 39*23*17
3/4" 11-20mm 2500 15.5 39*24*18
7/8" 13-23mm 2500 16 39*25*18
1" 16-25mm 2000 14.5 40x26x18
1-1/16" 14-27mm 2000 15 40x26x20
1-1/4" 18-32mm 2000 16 40x26x24
3/4" 11-20mm 12.7 1000 17 50x30x16
7/8" 13-23mm 1000 18 50x30x16
1-1/16" 14-27mm 1000 19 50x30x18
1-1/4" 18-32mm 1000 20 50x32x21
1-1/2" 21-38mm 1000 21 50x30x21
1-3/4" 21-44mm 1000 22 50*30*26
2" 27-51mm 1000 23 50*30*28
2-1/4" 33-57mm 1000 24 50*30*30
2-1/2" 40-63mm 1000 25 50*30*32
2-3/4" 46-70mm 1000 26 50*30*34
3" 52-76mm 500 14 50x30x24
3-1/4" 59-82mm 500 14.5 50x30x37
3-1/2" 65-89mm 500 15 50x30x30
3-3/4" 72-95mm 500 15.5 50x30x44
4" 78-101mm 500 16 50x30x40
4-1/4" 84-108mm 500 16.5 50x30x50
4-1/2" 91-114mm 250 9.5 50x30x26
4-3/4" 95-120mm 250 10 50x30x30
5" 105-127mm 250 10.5 50x30x34
5-1/4" 110-134mm 250 11 50x30x37
5-1/2" 118-140mm 250 11.5 50x30x40
5-3/4" 125-146mm 250 12 50x30x43
6" 130-152mm 250 12.5 50x30x46
6 1/4" 133-159mm 250 13 50x30x48
6-1/2" 143-165mm 250 13.5 50x30x50
6 3/4" 146-171mm 250 14 50x30x54
7" 155-178mm 250 14.5 50x30x56
