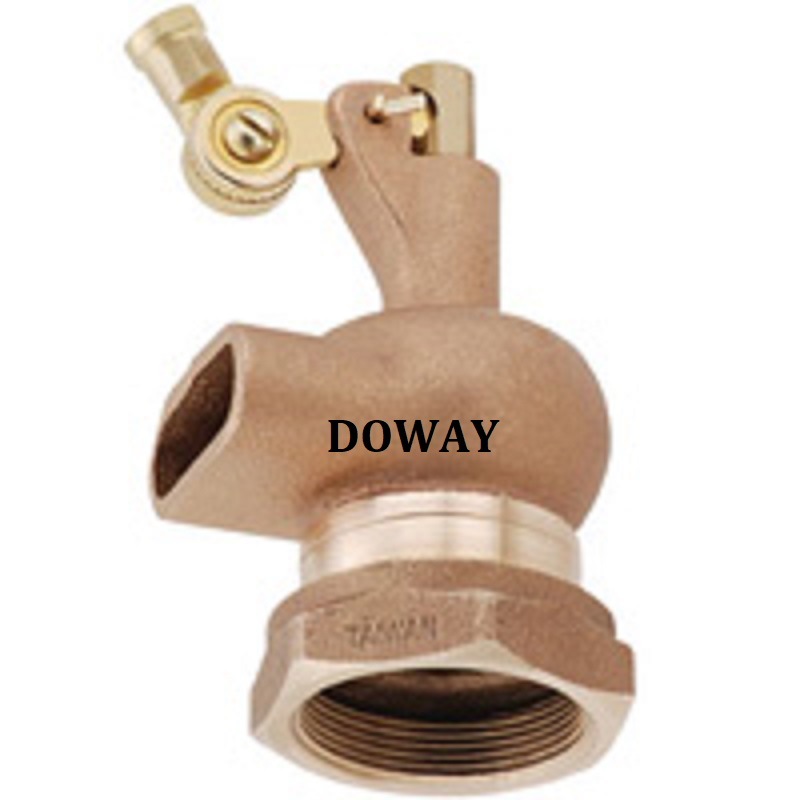

China Factory Custom High Quality Bronze Float Valve (DW-BV008)
-
DW-BV008
-
OEM
-
8481804090
-
Ningbo, China
-
500000 Pieces/Month
-
L/C, T/T
Product Description:
China Factory OEM Bronze Water intake valve for boat
1. Material: Bronze (C83600/CC491K)
2. Size:3/4"-2''
3. Thread: NPSM/BSP
4. Transportation: By sea or air
5. Delivery Time: Within 30~45 days after received payment.
6. Payment Terms: T/T (30% payment in advance, the balance is paid at the sight of B/L copy).
7. Package: Inner box, outer carton, then by pallet.
| Why Us | Experienced in manufacutring and exporting brass valves and fittings |
| Strong OEM and ODM ability | |
| Supply OEM service According to customer's Logo | |
| All fittings Are according to DIN8076 | |
| Small orders accepted | |
| Competitive prices, top quality, professional service and prompt delivery | |
| Quality checking and controlling strictly |

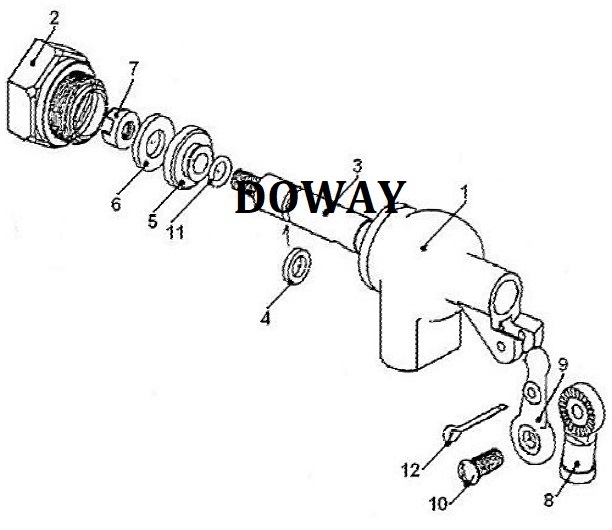

Float Valve FIP x Plain - Material Specifications
| No. | Name | Material |
|---|---|---|
| 1 | Body | Bronze C84400 |
| 2 | Base | Bronze C84400 |
| 3 | Plunger | Brass Rod |
| 4 | Leather Ring | Leather |
| 5 | Holder | Brass Rod C36000 |
| 6 | Packing | Rubber NBR |
| 7 | Nut | Brass |
| 8 | Short Arm | Forged Brass C37700 |
| 9 | Long Arm | Forged Brass C37700 |
| 10 | Screw | Brass Rod C3600 |
| 11 | O-Ring | Rubber NBR |
| 12 | Cotter Pin | Brass Wire C3600 |

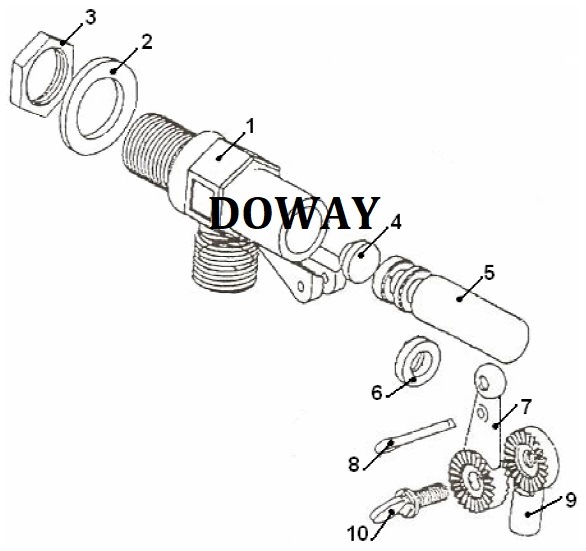

Float Valve MIP x PLAIN & MIP x MIP - Material Specifications
| No. | Name | Material |
|---|---|---|
| 1 | Body | Bronze C84400 |
| 2 | Packing | Rubber NBR |
| 3 | Nut | Brass Rod C3600 |
| 4 | Washer | Buna |
| 5 | Plunger | Brass Rod C3600 |
| 6 | Leather Ring | Leather |
| 7 | Long Arm | Forged Brass C37700 |
| 8 | Cotter Pin | Brass Wire C3600 |
| 9 | Short Arm | Forged Brass C37700 |
| 10 | Thumb Screw | Brass Rod C36000 |
Product Description:
China Factory OEM Bronze Water intake valve for boat
1. Material: Bronze (C83600/CC491K)
2. Size:3/4"-2''
3. Thread: NPSM/BSP
4. Transportation: By sea or air
5. Delivery Time: Within 30~45 days after received payment.
6. Payment Terms: T/T (30% payment in advance, the balance is paid at the sight of B/L copy).
7. Package: Inner box, outer carton, then by pallet.
| Why Us | Experienced in manufacutring and exporting brass valves and fittings |
| Strong OEM and ODM ability | |
| Supply OEM service According to customer's Logo | |
| All fittings Are according to DIN8076 | |
| Small orders accepted | |
| Competitive prices, top quality, professional service and prompt delivery | |
| Quality checking and controlling strictly |
Float Valve FIP x Plain - Material Specifications
| No. | Name | Material |
|---|---|---|
| 1 | Body | Bronze C84400 |
| 2 | Base | Bronze C84400 |
| 3 | Plunger | Brass Rod |
| 4 | Leather Ring | Leather |
| 5 | Holder | Brass Rod C36000 |
| 6 | Packing | Rubber NBR |
| 7 | Nut | Brass |
| 8 | Short Arm | Forged Brass C37700 |
| 9 | Long Arm | Forged Brass C37700 |
| 10 | Screw | Brass Rod C3600 |
| 11 | O-Ring | Rubber NBR |
| 12 | Cotter Pin | Brass Wire C3600 |
Float Valve MIP x PLAIN & MIP x MIP - Material Specifications
| No. | Name | Material |
|---|---|---|
| 1 | Body | Bronze C84400 |
| 2 | Packing | Rubber NBR |
| 3 | Nut | Brass Rod C3600 |
| 4 | Washer | Buna |
| 5 | Plunger | Brass Rod C3600 |
| 6 | Leather Ring | Leather |
| 7 | Long Arm | Forged Brass C37700 |
| 8 | Cotter Pin | Brass Wire C3600 |
| 9 | Short Arm | Forged Brass C37700 |
| 10 | Thumb Screw | Brass Rod C36000 |
