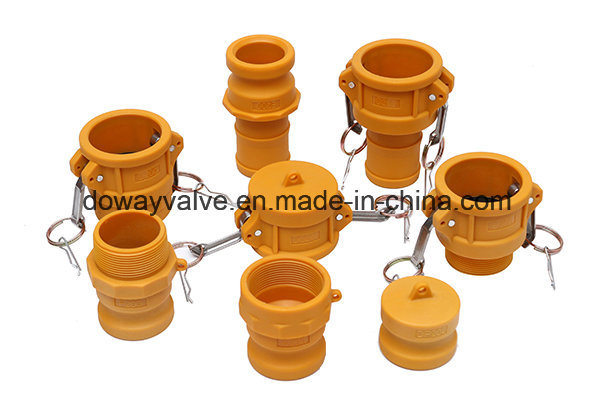

Nylon Camlock Coupler Type C - electrical inert & cross threading
Type C Nylon camlock Coupler - Female Coupler × Hose Shank, is usually used with Type A, F & DP adapters. Our nylon cam & groove couplings are made of strong nylon and glass fibers. They are resistant to various chemicals, solvents, gasoline, treated water, coolants, salt water and slurry mixture.
Owing to its great flexibility and unique character, nylon camlock coupling can stand up with cross threading, impact, warpage and crushing. For special applications, they are totally inert and make no sparks or galvanic action.
Product description:
| Material | Fiber reinforced nylon; |
| Handles | stainless steel; |
| Pins & Rings | stainless steel; |
| Size | 3/4", 1", 1 1/4", 1 1/2", 2", 3" and 4"; |
| Gasket | NBR, EPDM, Viton, PTFE & Silicon; |
| Working Pressure | Depends on sizes & temperature; |
| Temperature Range | -30 °F to +200 °F (-34.4°C to +93.3 °C); |
| MOQ | 500 pcs; |
| Packaging | Cartons. |
Remark: Any quick hose coupling is NOT suitable for compressed air or steam applications.
Camlock couplings should work under rated working pressure. Once its working pressure surpasses its limited value, the risk rate will rise. The pressure below is measured at ambient temperature. When the temperature rises, the pressure will decrease.
Table 1: Specification of Nylon Camlock Coupler Type C
| Picture | Size (inch) | A (mm) | B (mm) | D (mm) | E (mm) | G (mm) |
| 1/2 | 8 | 79 | 14 | 34 | 50 | |
| 3/4 | 14 | 87 | 21 | 34 | 50 | |
| 1 | 19 | 99 | 27 | 41 | 60 | |
| 1-1/4 | 25 | 103 | 34 | 46 | 76 | |
| 1-1/2 | 31 | 110 | 39 | 49 | 85 | |
| 2 | 41 | 124 | 53 | 56 | 94 | |
| 2-1/2 | 55 | 141 | 65 | 56 | 109 | |
| 3 | 65 | 147 | 78 | 60 | 133 | |
| 4 | 85 | 170 | 102 | 60 | 160 |
FAQ:
1. What is your term of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
2. How about your delivery time?
A: It usually takes 15 to 30 days, which generally depends on the quantity of your order and our storage.
3. Can I get free samples?
A: Yes, send your address, your telephone number, post code, and express account number to us, and tell us which samples you need and samples specification.
4. Can you produce products with my own brand?
A: Yes, we can offer OEM services.
Our Company:
Ningbo Doway M&E Co., Ltd. is built in Ningbo China, which is established in 2000. We specialized in manufacturing brass & bronze valves and fittings, water meter accessories and pipe fittings. Our mainly products cover ball valves, angle valves, gate valves, check valves, bib cocks, marine valves, pipe fittings, PPR insert, radiator valves and fittings, camlock and grooved couplings etc.
Nowadays, we are involving in the fields of brass forged, brass investment casting, bronze sand casting, brass/bronze gravity casting etc. Our products are widely used in water and plumbing systems and well recognized in Europe, USA, Middle East and Other Land with competitive price, quality products, and considerate service. Our company passed ISO9001 Certification and CE Approval for our ball valves, and UL approval for our bronze ball valves.
Based on the Spirit "Honesty, Pragmatic, Innovation", we are proud to own one professional team and provided customers competitive prices, quality products with On Time Delivery. Also we have strong OEM and ODM ability for clients to supply various valves and fittings in brass & bronze material for water solution.
Ningbo Doway M&E Co., Ltd is seeking to be the best cooperator for water plumbing and improve its worth to customers. Please contact us freely to know more details about what we can bring to your sourcing operation.
