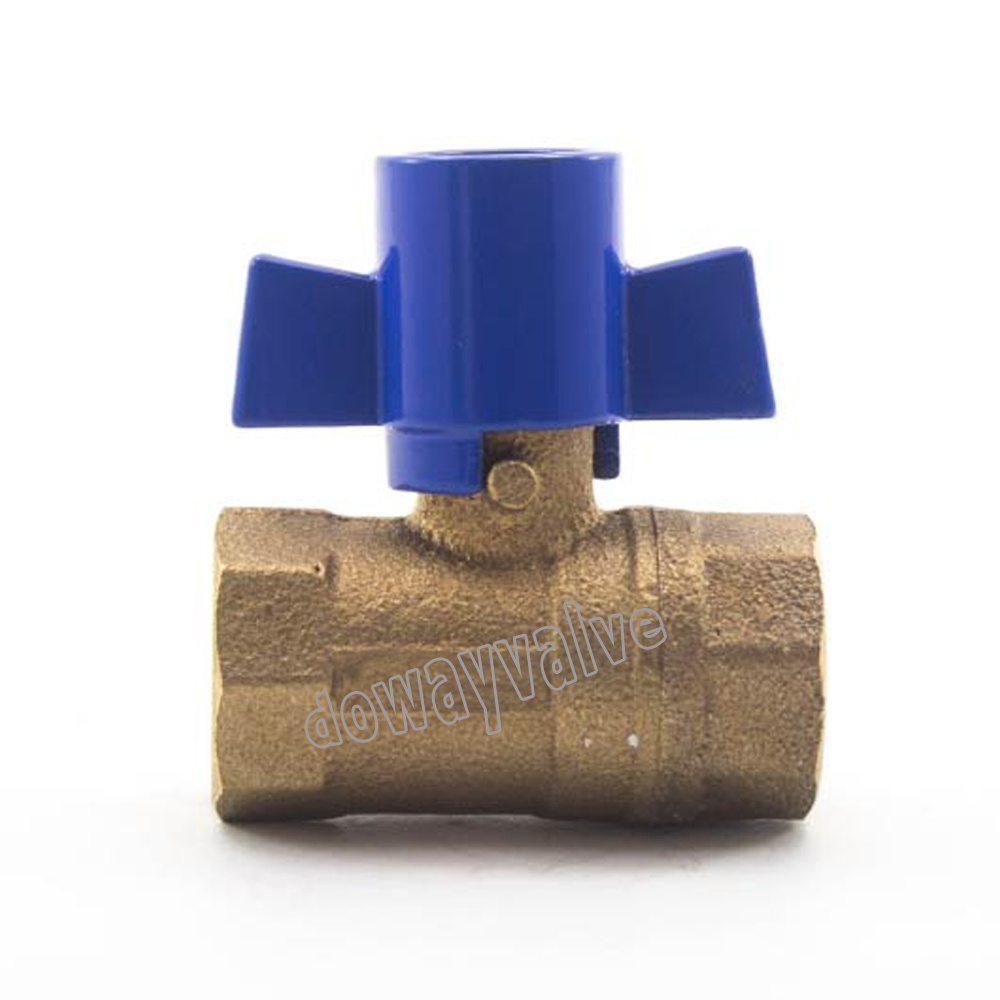

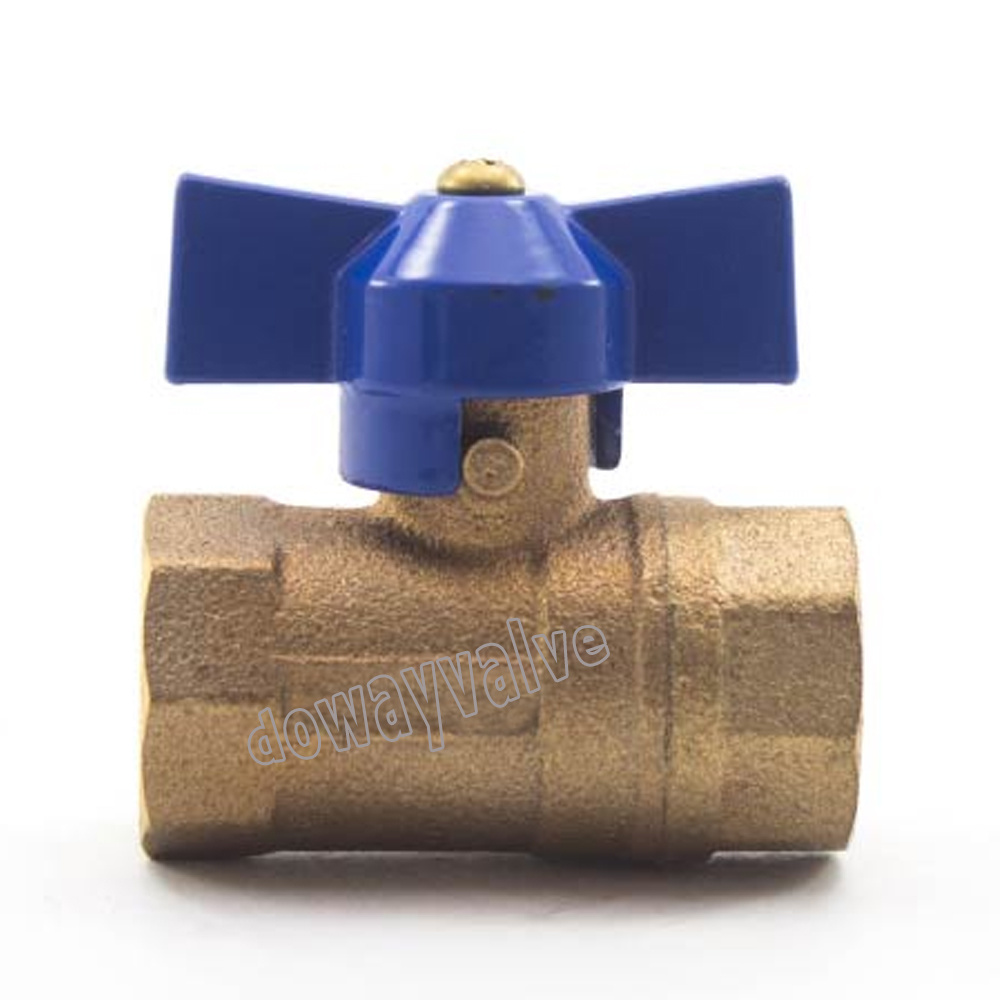

Chinese Factory Water Meter Lockable Valve for USA Market (DW-BV021)
-
DW-BV021
-
OEM
-
8481804090
-
Ningbo, China
-
10000PCS Per Month
-
L/C, T/T, Western Union, Paypal
Product Description:
Chinese Factory Butterfly Handle Water Meter Lockable Valve for USA Market;
1. Material: Bronze (C83600, C84400)
2. Size: 1/2", 3/4", 1"
3. Handle: Lockable butterfly handle
4. Package: Each valve by one polybag, inner box, cartons with pallets
5. Deliverry Time: Within 30~45days after received payment
6. Payment Term: T/T(30% payment in advance,the balance is paid at the sight of B/L coppy), paypal, western union(like sample order ) and L/C .
Technical Specification:
| Working Pressure | 1.6Mpa |
| Tested Pressure | 2.0Mpa |
| Working Medium | Water, oil, gas |
| Working Temperature | -20° C≤ T≤ 120° C |
Installation Instruction:
| 1 | Before Installing the valves, clean and remove any objests from the pipes | |||||||
| 2 | Ensure both connection pipes either side of valves and aligned | |||||||
| 3 | Ensure that two sections of the pipe match, and the valves until will not accept any | |||||||
| gaps, any distroy in the pipes may affect the tighting of the connection, The work | ||||||||
| of the vales and can even casue a rupture. To be sure, place the kit in position to | ||||||||
| ensure the assembling will work | ||||||||
| 4 | Before starting the fittings, ensure the threads and tappings are clean | |||||||
| 5 | If secton of pipes have not their final support in that place, They can be temporatily | |||||||
| fixed, In order to avoid unnecessary strain on the valves | ||||||||
| 6 | The theoretical lenghts gived by ISO7/1 for the tapping are typically longer than | |||||||
| required, The length of the thread should be limited, and check that the end of tube | ||||||||
| does not press right up to the head of the thread | ||||||||
| 7 | For the sealing assembly valves pipes, it is essential to use products that are | |||||||
| compatible with the requirements of the clean water meter | ||||||||
| 8 | Position the pipe clips on both side of the valves | |||||||
| 9 | If mounting on an air conditioning with Per tubing and hoses, it is is necessary | |||||||
| to support the tubes and hoses with the fixed to abvoid strain on valves | ||||||||
| 10 | When screwing the valves, ensure you only rotate on screws side by the 6 ended | |||||||
| side, Use an open ended spanner or an adjustable spanner and not a monkey | ||||||||
| wrench. Never use a vice to tighten the fixing of the valves | ||||||||
| 11 | Do not over tighten the valves, Do not block with any extensions as it may cause a | |||||||
| rupture or weekening of the forging strenght. The Torque force not more than 30Nm | ||||||||
General Guidelings:
| 1 | Ensure that the valves to be used are appropriate for the condition of the installation | |||||||
| 2 | Be sure to have enough valve to be able to isolate the section of pipes as well as | |||||||
| the approciate equipment for maintenance and repair | ||||||||
| 3 | Ensure that valves to be installed are of correct strenght to be able to support the | |||||||
| capacity of their usage | ||||||||
| 4 | Installation of all circuits should ensure their function can be automatically tested on | |||||||
| a regular basis ( at least two times per year) | ||||||||
FAQ:
1. What is your term of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
2. How about your delivery time?
A: It usually takes 15 to 30 days, which generally depends on the quantity of your order and our storage.
3. Can I get free samples?
A: Yes, send your address, your telephone number, post code, and express account number to us, and tell us which samples you need and samples specification.
4. Can you produce products with my own brand?
A: Yes, we can offer OEM services.
Our Company:
Ningbo Doway M&E Co., Ltd. is built in Ningbo China, which is established in 2000. We specialized in manufacturing brass & bronze valves and fittings, water meter accessories and pipe fittings. Our mainly products cover ball valves, angle valves, gate valves, check valves, bib cocks, marine valves, pipe fittings, PPR insert, radiator valves and fittings, camlock and grooved couplings etc.
Nowadays, we are involving in the fields of brass forged, brass investment casting, bronze sand casting, brass/bronze gravity casting etc. Our products are widely used in water and plumbing systems and well recognized in Europe, USA, Middle East and Other Land with competitive price, quality products, and considerate service. Our company passed ISO9001 Certification and CE Approval for our ball valves, and UL approval for our bronze ball valves.
Based on the Spirit "Honesty, Pragmatic, Innovation", we are proud to own one professional team and provided customers competitive prices, quality products with On Time Delivery. Also we have strong OEM and ODM ability for clients to supply various valves and fittings in brass & bronze material for water solution.
Ningbo Doway M&E Co., Ltd is seeking to be the best cooperator for water plumbing and improve its worth to customers. Please contact us freely to know more details about what we can bring to your sourcing operation.
