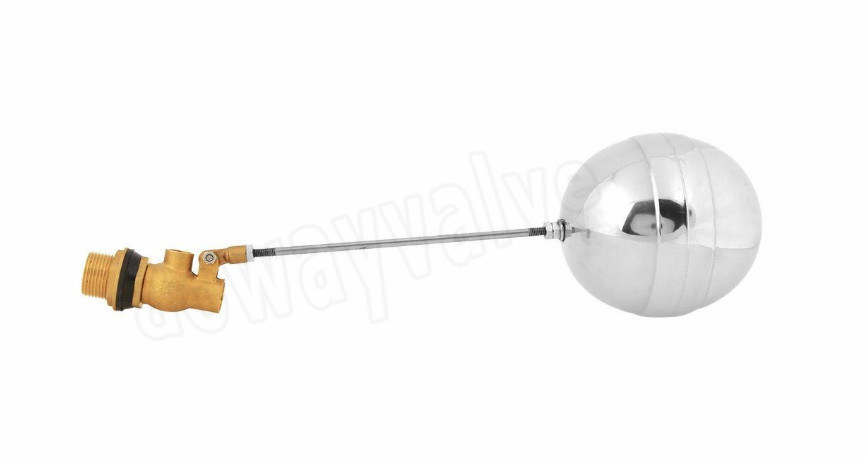

G3/4" 1.6MPa Male Thread Stainless Steel Floating Ball with Rubber Gasket (DW-F204)

Price: $ 2.85
  • DW-F204
  • OEM
  • 8481804090
  • Ningbo, China
  • 50000PCS/Month
  • L/C, T/T, Western Union


Product Description:
Brass forged body, NBR rubber gasket,brass nut, brass beg, brass lever and PVC ball.

The water level of water tower or pool is controlled by curve arm and float ball brake, which is easy to maintain, flexible and durable, with high level control accuracy, the water level is not disturbed by water pressure, and the water level is tight and watertight.
The working principle of
Floats always want to float on the water, when the water rises, floats also rise. As it floats up, it drives the link up. The connecting rod is connected to a valve at the other end, and when raised to a certain position, the rod supports a rubber piston pad to seal off the water supply. When the water level drops, float also drops, even dry and drive the piston pad to open.

1. Application: Water tank and reservoir.
2. Material: normal brass ,CW617, DZR,lead free,low lead brass available
3. Size: DN15, DN20, DN25 DN40 DN50
4. Thread Standard: BSP or NPT
5. Delivery Time: within 30~45 days after received payment.
6. Payment Terms: T/T (30% payment in advance, the balance is paid at the sight of B/L copy).
7. Package: Inner box, outer carton, then by pallet.

Technical Specification:

Working Pressure 0.2-1.6Mpa
Tested Pressure 1.6Mpa
Working Medium Water, oil, gas
Working Temperature -10° C≤ T≤ 90° C


Dimensions are for reference only and can be customized according to requirements.
