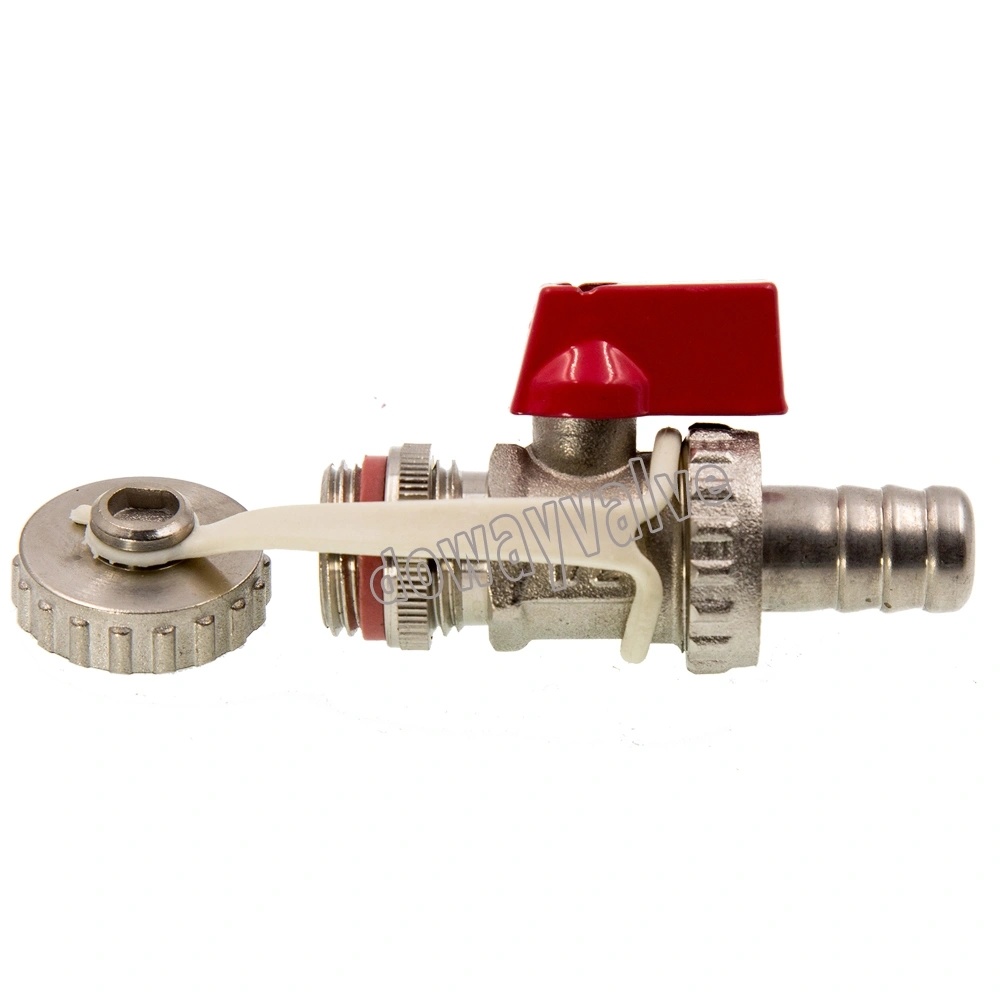

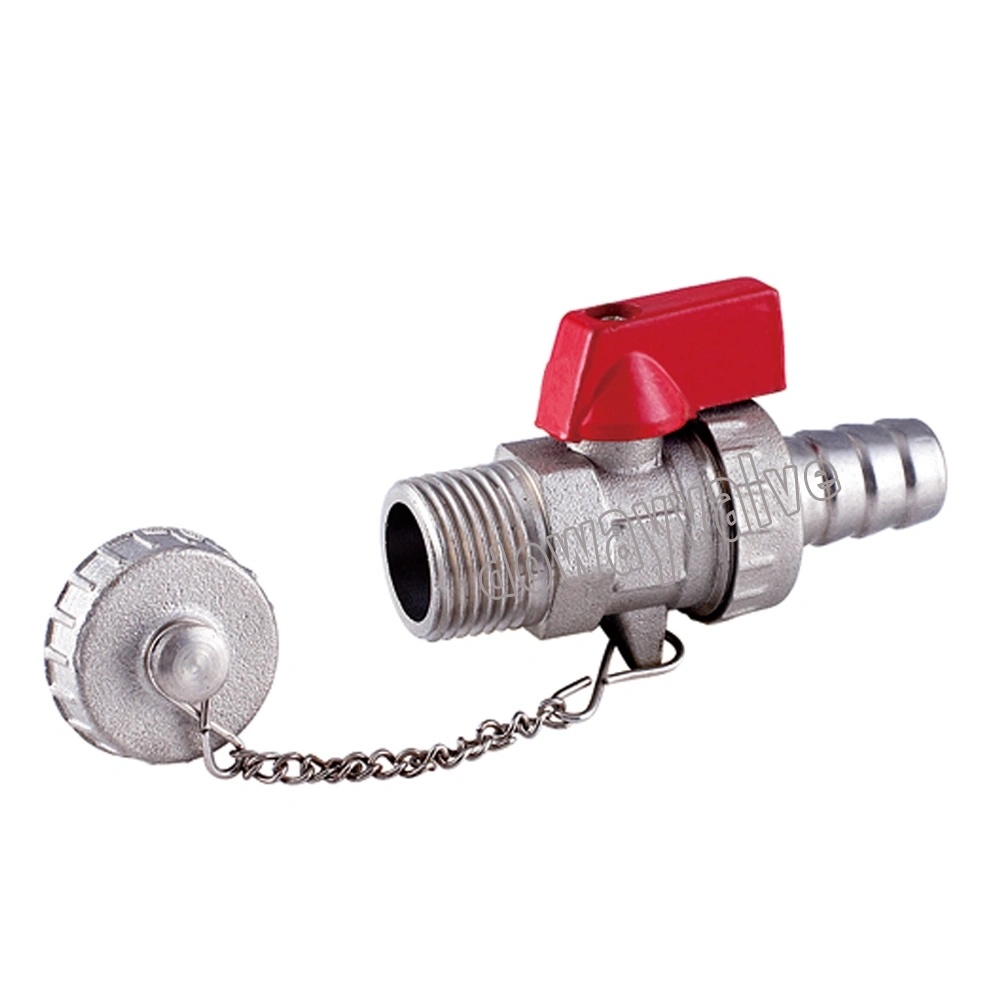

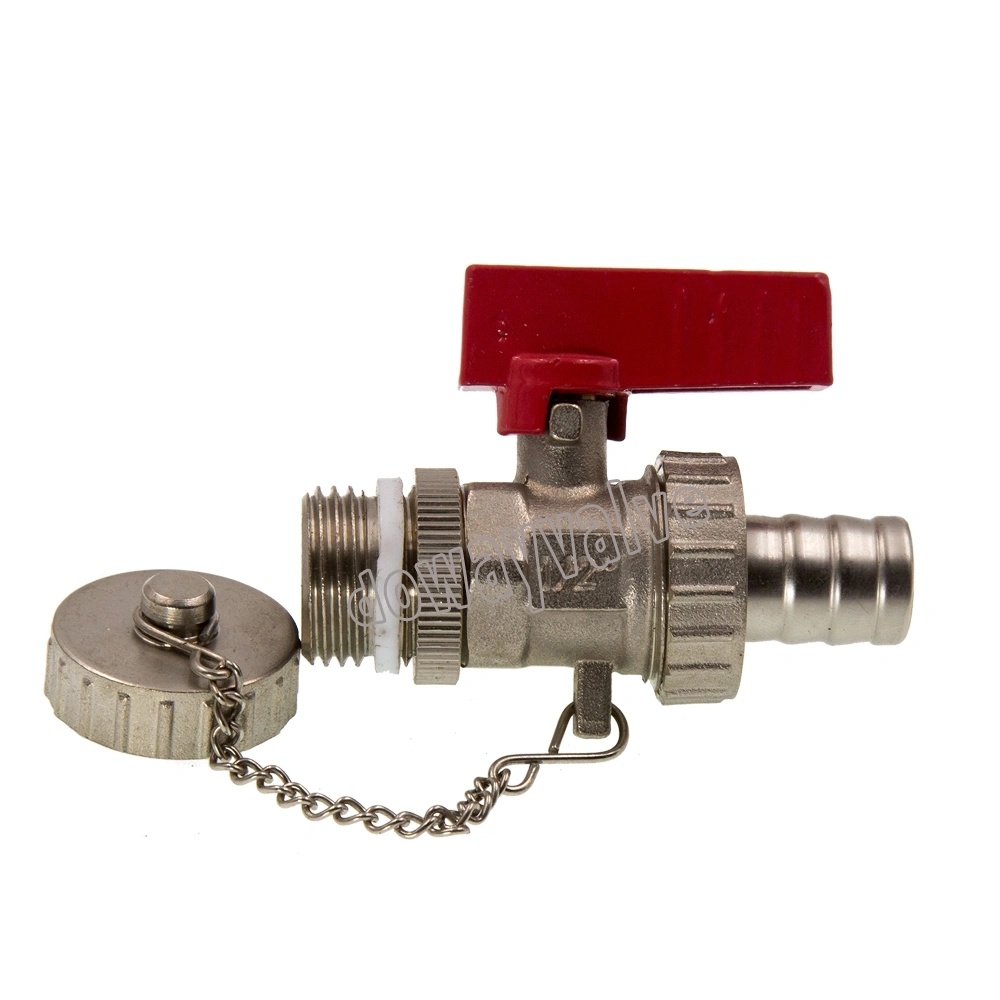

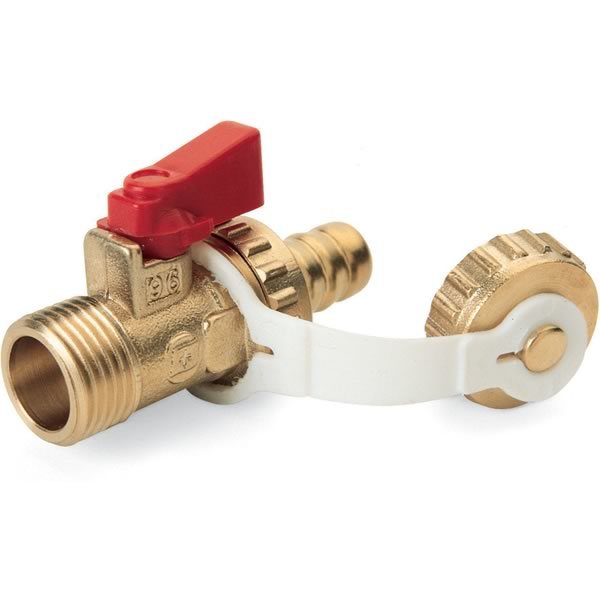

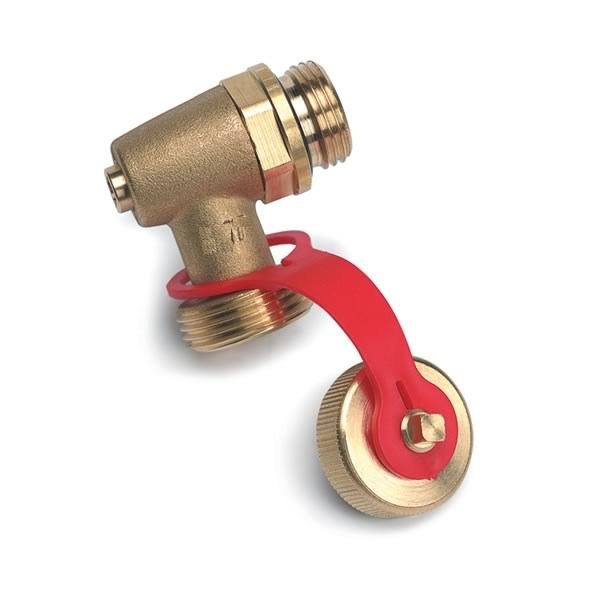

China Factory OEM High Quality Brass Rotating Angle Valve (DW-B3722)

Price: $ 1.97
Availability:
  • DW-B3722
  • OEM
  • 8481804090
  • Ningbo, China
  • 50000PCS/Month
  • L/C, T/T, Paypal

富文本-宁波杜威机电1富文本-宁波杜威机电4-1富文本-宁波杜威机电2富文本-宁波杜威机电3富文本-宁波杜威机电5-1

Product Description:
China Factory high quality boiler filling drain valve,Brass Mini Ball Valve, Brass ball valve with hose union, Forged brass mini valve, brass mini valves, Chrome plated mini ball valve, Chrome plated brass ball valve, Chrome plated brass  mini ball valve, brass forged body, brass ball chrome plated or polish, brass stem and Steel handles for gas connection, PTFE seals

Two-Piece Design with self-sealing Thread and Nut
Pressure Rating PN 10* (145 psi)
Temperature Rating max. 100°C (212°F) water (no steam)
Heavy version

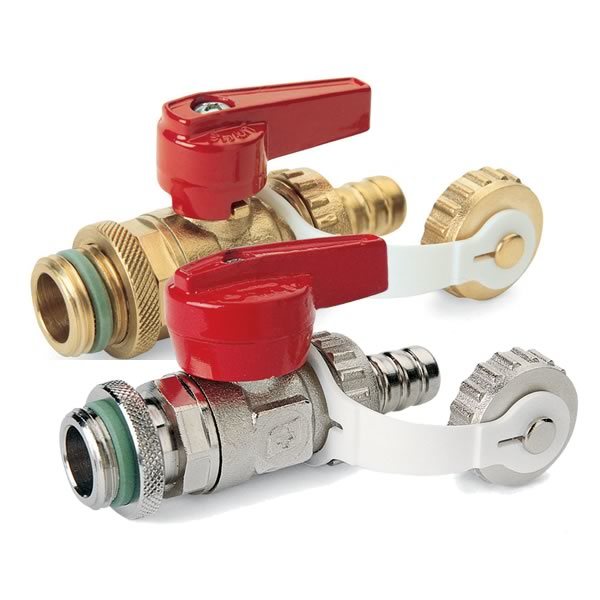

Fig. 275 Brass body, with Florida red aluminium Handle
Also available for Solar Systems

Fig. 28504 Nickel plated Brass body, with Carolina red aluminium Handle
* 18°C (64,4°F) water

  1. Material: Forged Brass (CW617N, CW614, CW602N, ASTM C37700)

  2. Size: 1/2", 3/4"

  3. Application: Flow control, hydraulic connection

  4. Handle:  ABS handle, Aluminium handle (Red color or Blue Color or Green color handle)

  5. Delivery Time: within 30~45 days after received payment.

  6. Payment Terms: T/T (30% payment in advance, the balance is paid at the sight of B/L copy).

  7. Package: Inner box, outer carton, then by pallet.

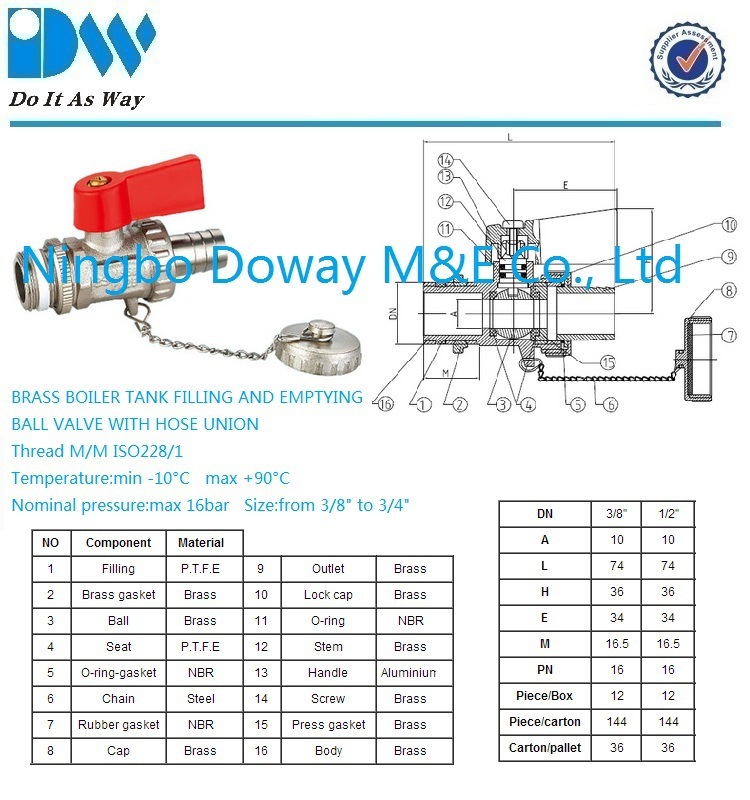

Technical Specification:

Working pressure 1.6Mpa
Tested Pressure 1.0Mpa By Gas
Working medium Water, gas
Working temperature -20° C≤ T≤ 120° C

China Factory OEM High Quality Brass Rotating Angle Valve
China Factory OEM High Quality Brass Rotating Angle Valve
China Factory OEM High Quality Brass Rotating Angle Valve
China Factory OEM High Quality Brass Rotating Angle Valve
China Factory OEM High Quality Brass Rotating Angle Valve
China Factory OEM High Quality Brass Rotating Angle Valve
China Factory OEM High Quality Brass Rotating Angle Valve

富文本-宁波杜威机电7富文本-宁波杜威机电8富文本-宁波杜威机电6

FAQ:
1. What is your term of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
2. How about your delivery time?
A: It usually takes 15 to 30 days, which generally depends on the quantity of your order and our storage.
3. Can I get free samples?
A: Yes, send your address, your telephone number, post code, and express account number to us, and tell us which samples you need and samples specification.
4. Can you produce products with my own brand?
A: Yes, we can offer OEM services.
