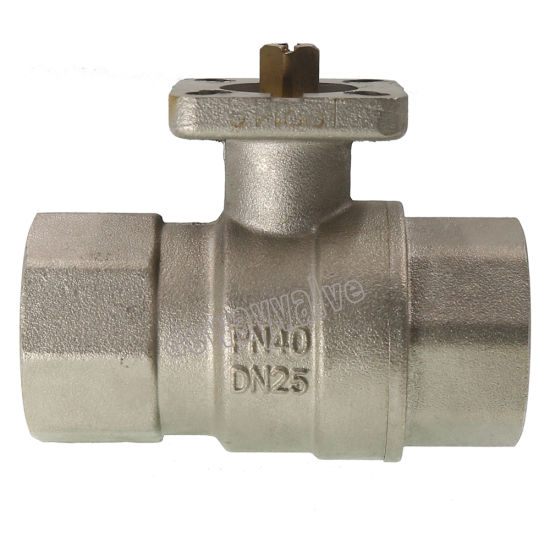

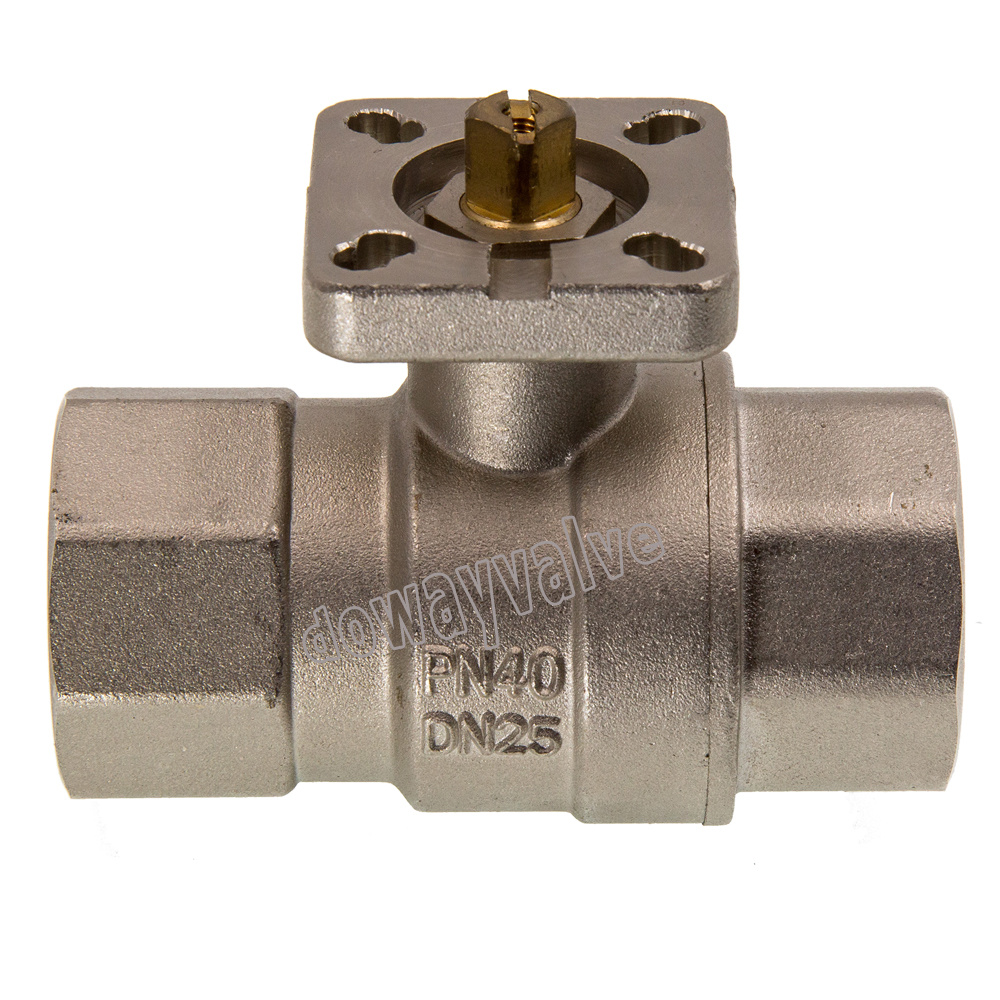

Chinese Factory ISO5211 Full Port Brass Ball Valve with Mounting Pad (DW-B303)
-
DW-B303
-
OEM
-
8481804090
-
Ningbo, China
-
50000PCS/Month
-
L/C, T/T, Paypal
Description:
Brass ball valve with mounting pad/ Motor actuactor ball valve
Brass forged/ S.S body, brass ball chrome plated/ S.S ball, brass/ S.S stem, for water treatment system, solar hotwater system and HVAC system
1. Application: Water treatment system, solar hotwater system and HVAC system
2. Material: Forged Brass (CW617N, CW614, CW602N, ASTM C37700) or S/S304 or S/S316
3. Surface: Brass color, nickel plated are available
4. Size: 1/2'', 3/4'', 1'', 11/4'', 11/2'', 2'', 21/2'', 3'',4''
5. Thread standard: according to ISO228, ISO7/1, DIN2999, or NPT
6. Package details: Each valve by one poly bag, inner box, cartons with pallets.

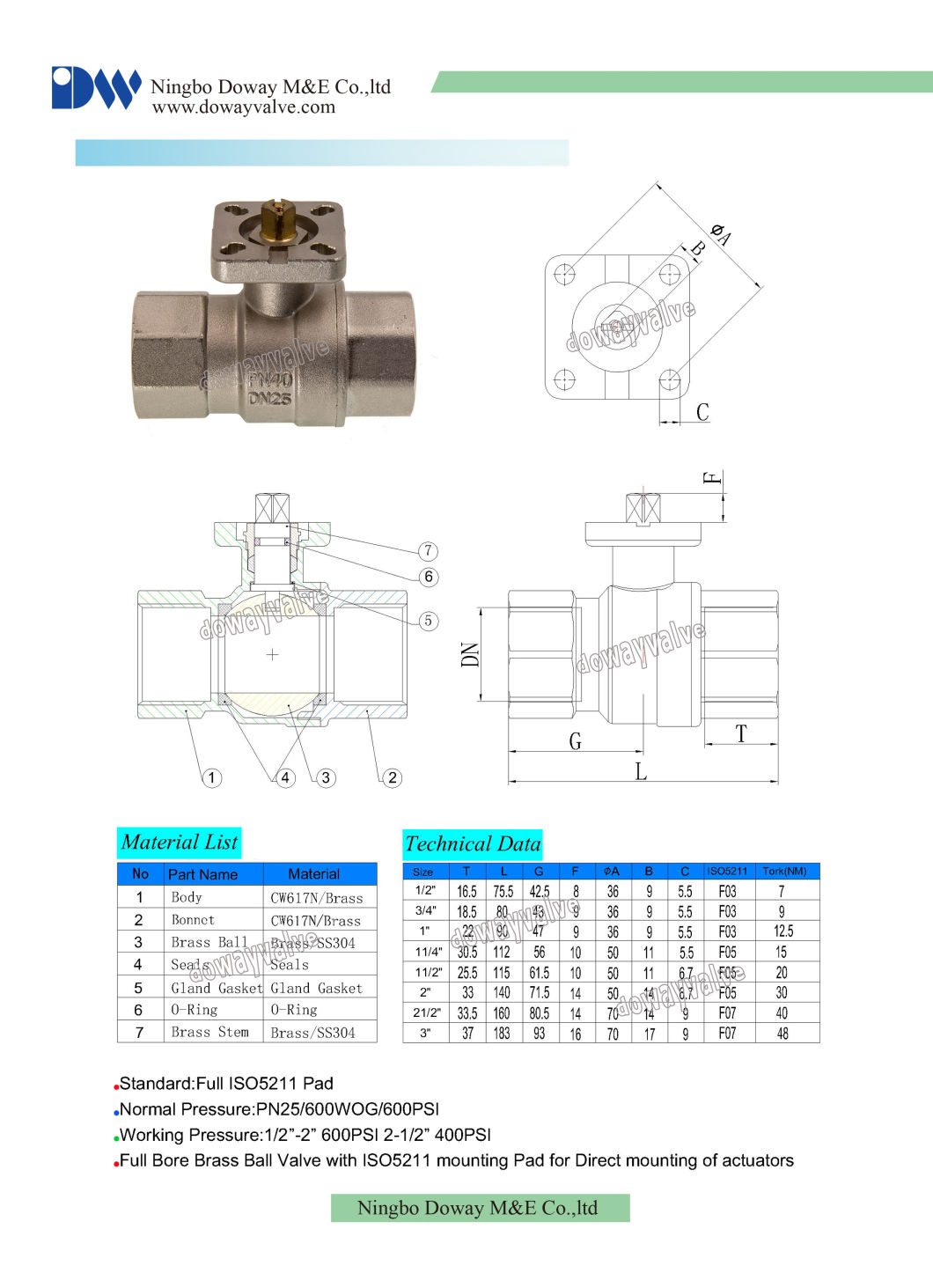

Technical Specification:
| Working Pressure | 2.0Mpa /300LBS |
| Tested Pressure | 2.0Mpa |
| Working Medium | Water, oil, gas |
| Working Temperature | -20° C≤ T≤ 160° C |
FAQ:
1. What is your term of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
2. How about your delivery time?
A: It usually takes 15 to 30 days, which generally depends on the quantity of your order and our storage.
3. Can I get free samples?
A: Yes, send your address, your telephone number, post code, and express account number to us, and tell us which samples you need and samples specification.
4. Can you produce products with my own brand?
A: Yes, we can offer OEM services.
