Hot Sales Carbon Steel Interlocking Clamp(DWF109)
-
DWF109
-
OEM
-
82032000
-
Ningbo, China
-
5000
-
L/C, T/T, Western Union, Paypal

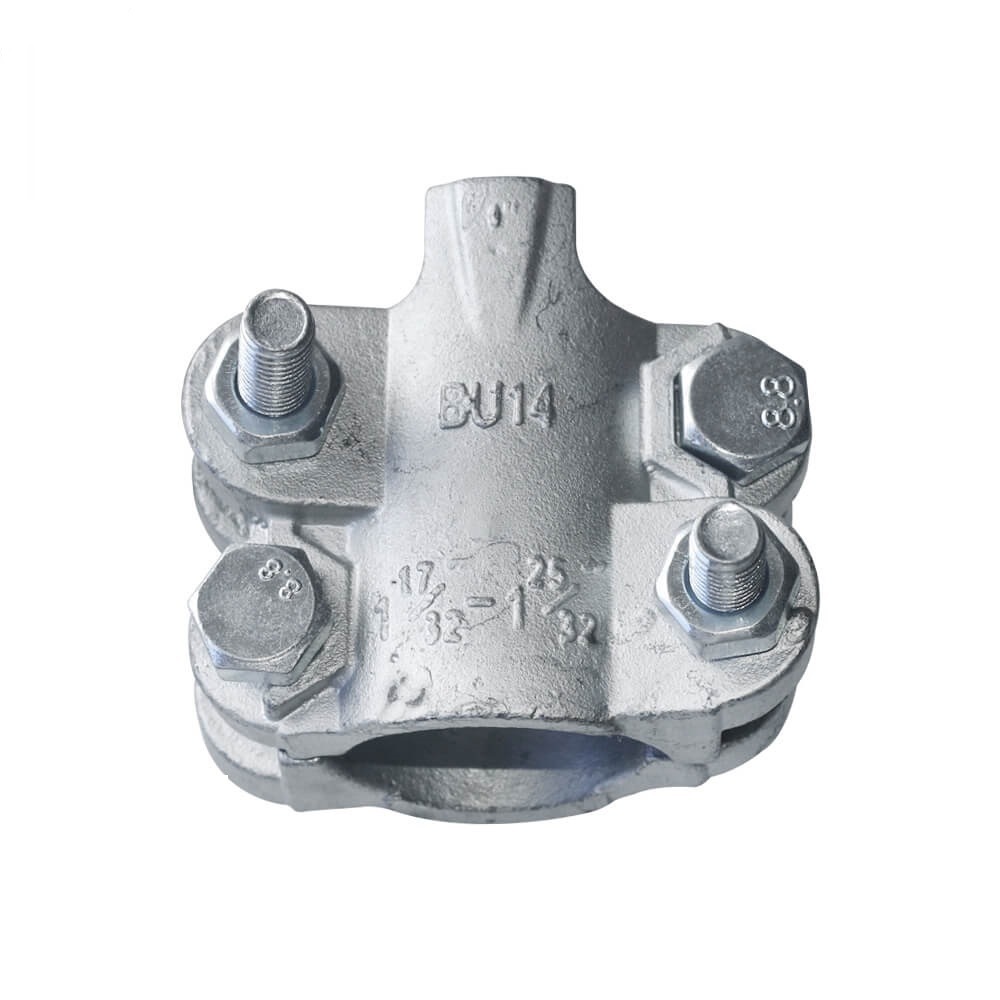

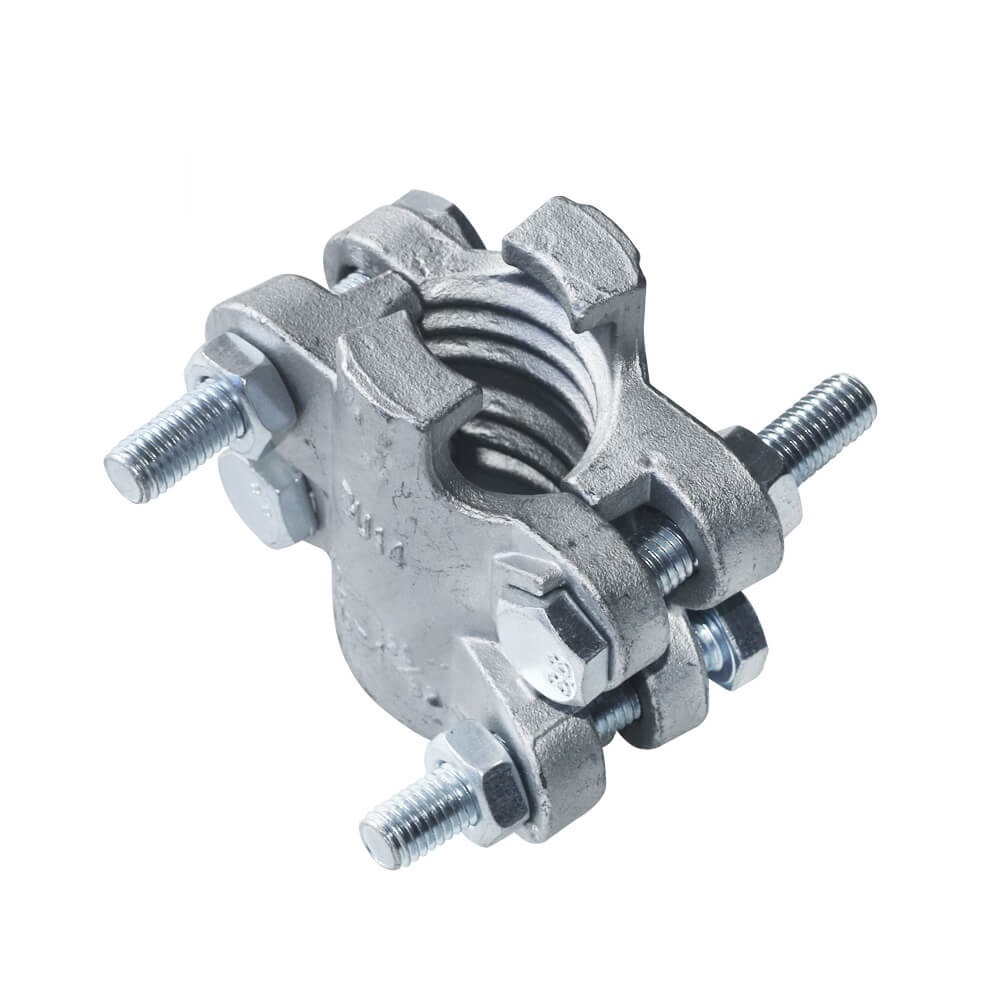

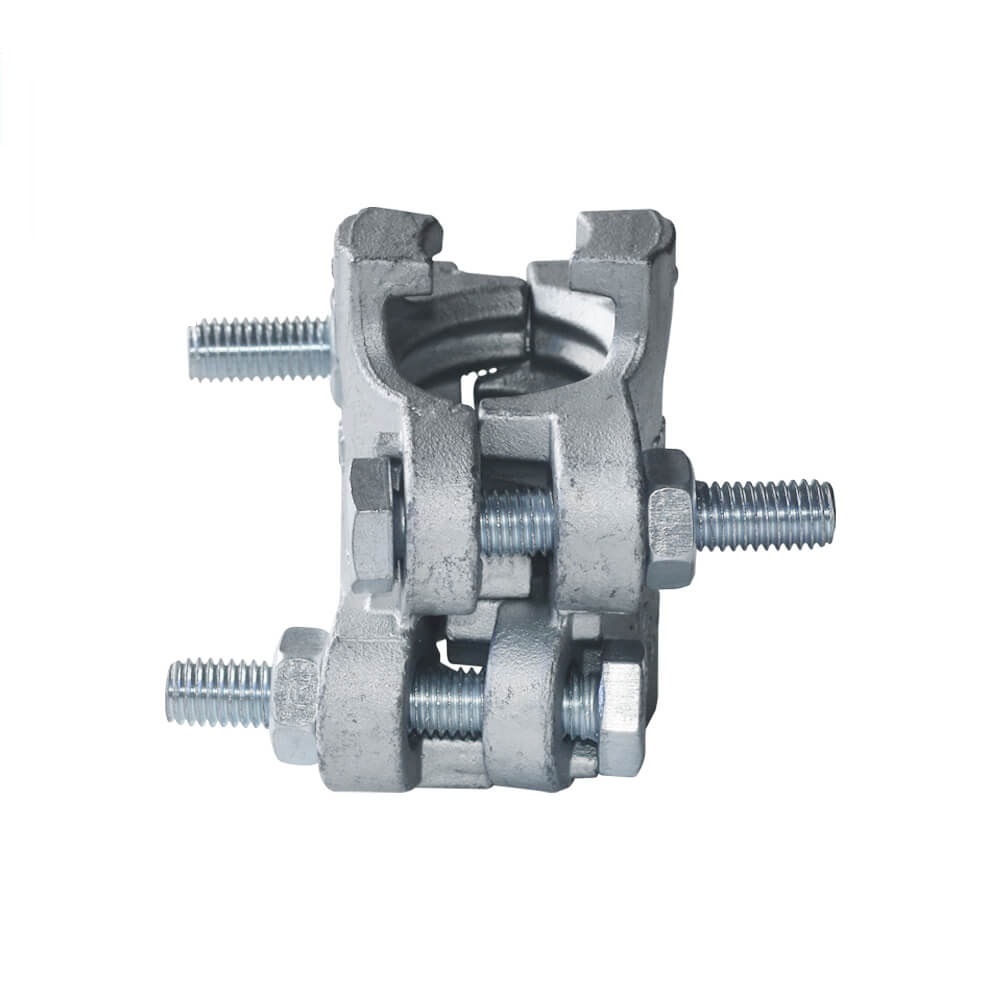

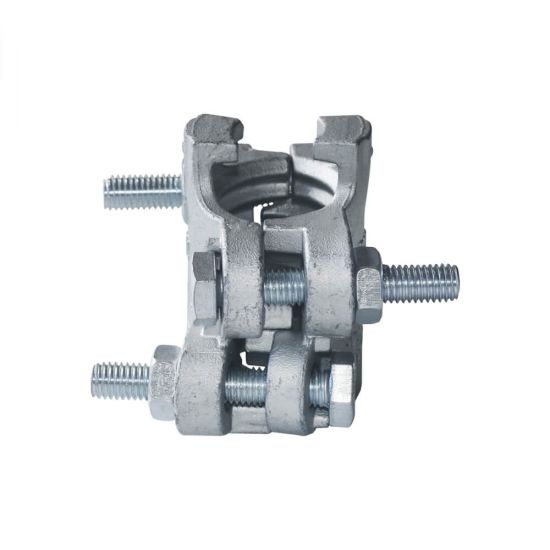

Hot Sales Carbon Steel Interlocking Clamp
This interlocking clamp is designed for industrial hose connections. It fits various pipe sizes from 1/2″ to 2″. Manufacturers and suppliers use it for secure hose fittings.
The clamp is made from carbon steel using precision casting. This ensures a strong and durable structure. It is available with polishing or sand-blast surface treatment.
It features BSP threads, with BSPP for female and BSPT for male connections. It meets EN 14420-8 and NF E 29-572 standards. These specifications make it suitable for aftermarket applications.
The clamp operates at a working pressure of 16 bar (230 psi). It has a test pressure of 30 bar (435 psi) and a minimum burst pressure of 50 bar (725 psi). This ensures safe and reliable performance.
It is available for sale in different industries. It is commonly used for tank cleaning couplings and ground joint couplings. The interlocking design provides a firm and stable connection.
Product Parameters
| Parameter | Value |
|---|---|
| Size | 1/2″~2″ |
| Casting Method | Precision casting (silica sol) |
| Surface Treatment | Polishing or sand-blast |
| Thread | BSP (Female: BSPP, Male: BSPT) |
| Main Body Material | Carbon steel, precision casting |
| Working Pressure | 16 bar / 230 psi |
| Test Pressure | 30 bar / 435 psi |
| Minimum Burst Pressure | 50 bar / 725 psi |
| Standard | EN 14420-8 / NF E 29-572 |
N | Size | Part No | Pipe OD dimension |
1 | 3/8" | CD | 11/16"--7/8" |
2 | 1/2" | A4 | 1"--1-3/16" |
3 | 3/4" | A9 | 1-1/8"--1-5/16" |
4 | 1" | A10 | 1-5/6"--1-1/2" |
5 | 1/2" | B4 | 15/16"--1-1/16" |
6 | 3/4" | BU9S | 1-5/32"--1-9/32" |
7 | 3/4" | BU9 | 1-3/16"--1-5/16" |
8 | 3/4" | B10 | 1-1/2"--1-11/16" |
9 | 1" | BU14 | 1-17/32"--1-25/32" |
10 | 1" | B14 | 1-11/16"--1-15/16" |
11 | 1-1/4" | BU19 | 1-25/32"--2-3/32" |
12 | 1-1/4" | B19 | 2-1/8"--2-3/8" |
13 | 1-1/2" | BU24 | 2-3/16"--2-3/8" |
14 | 1-1/2" | B24 | 2-1/4"--2-9/16" |
15 | 2" | BU29 | 2-1/2"--2-25/32" |
16 | 2" | B29 | 2-3/4"--2-1/16" |
17 | 4" | BU-49 | 5-1/4"--5-19/32" |
Features of Carbon Steel Interlocking Clamp
Precision Casting
Made using precision casting for consistent strength and durability.Size Options
Available in multiple sizes to match different hose connections.Surface Treatment
Offered with polishing or sand-blast for improved surface quality.Thread Compatibility
Uses BSP threads, ensuring compatibility with standard fittings.High-Pressure Application
Designed to withstand pressures up to 50 bar.
Advantages of Carbon Steel Interlocking Clamp
Secure Connection
Provides a firm interlocking connection for hoses and fittings.Gripping Fingers
Forward gripping fingers prevent hose or fitting pull-out.Compatibility
Works well with ground joint females and male collared nipples.Economical Solution
A cost-effective and safe method for securing universal hose ends.Reliable Bolt Tightening
Tightening the bolts ensures a strong and durable connection.
Application of Carbon Steel Interlocking Clamp
Tank Cleaning Couplings
Used with tank cleaning couplings to secure hose connections.Ground Joint Couplings
Compatible with ground joint couplings for stable connections.Interlocking Inserts
Ideal for use with interlocking type inserts and universal couplings.Industrial Use
Ensures a secure locking mechanism in various industrial settings.
Service
Payment Terms: T/T 30% deposit, 70% balance before delivery.
Delivery Time: 15-30 days, based on order size and stock availability.
Free Samples: Available on request with shipping details.
OEM Services: Custom branding and manufacturing options are available.
Company Related
Ningbo Doway M&E Co., Ltd. is based in Ningbo, China, and was established in 2000. The company specializes in manufacturing brass and bronze valves, fittings, and water system accessories. It holds certifications including ISO9001, CE, and UL approvals. The company is involved in brass forging, investment casting, bronze sand casting, and gravity casting. Ningbo Doway’s products are widely used in Europe, the USA, the Middle East, and other regions. The company is committed to providing high-quality products, competitive pricing, and on-time delivery.
FAQs
1. What is the payment term for purchasing the Hot Sales Carbon Steel Interlocking Clamp?
We offer T/T payment terms with a 30% deposit and the remaining 70% before delivery. We will provide product photos and packaging details before you pay the balance.
2. Can I get a free sample of the Hot Sales Carbon Steel Interlocking Clamp?
Yes, we can provide free samples. Please send your address, phone number, postal code, and express account details along with the sample specifications you need.
3. Do you offer custom branding for the Hot Sales Carbon Steel Interlocking Clamp?
Yes, we provide OEM services and can manufacture the Hot Sales Carbon Steel Interlocking Clamp with your custom branding and specifications.
4. What thread types are available for the Hot Sales Carbon Steel Interlocking Clamp?
The clamp is available with BSP threads: female BSPP (parallel) and male BSPT (tapered), ensuring compatibility with standard fittings.
5. What is the working pressure of the Hot Sales Carbon Steel Interlocking Clamp?
The clamp has a working pressure of 16 bar (230 psi) and can withstand a test pressure of 30 bar (435 psi).
